Neoprene Faced Phenolic Gaskets

Neoprene Faced Phenolic Gaskets have been used as standard ''flat'' isolating gaskets in the oil and gas industries for many years. Soft neoprene rubber sheets are factory applied to both sides of a laminated phenolic retainer providing an effective sealing surface.


Send Inquiry


Description

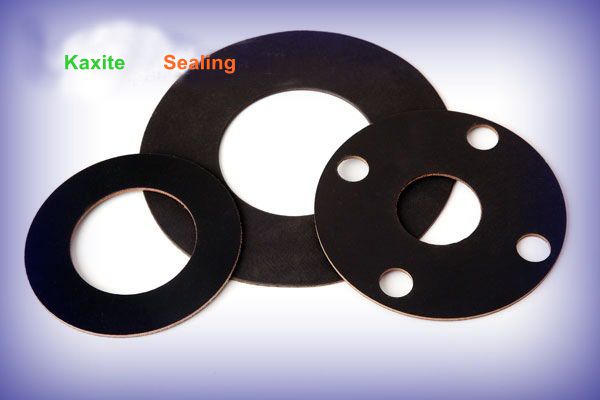

Neoprene Faced Phenolic Gaskets

Neoprene Faced Phenolic Gaskets

Product name: Neoprene Faced Phenolic Gaskets
Details:

Neoprene Faced Phenolic Gaskets have been used as standard ''flat'' isolating gaskets in the oil and gas industries for many years. Soft neoprene rubber sheets are factory applied to both sides of a laminated phenolic retainer providing an effective sealing surface. The temperature limit of these gaskets is approximately +175o F. (+80o C.).

Application of Neoprene Faced Phenolic Gaskets
  • To limit the extent and cost of cathodic protection current to only those pipes that need to be protected from the main cathodic protection system
  • To electrically "split up" long pipelines into distinctive cathodic protection systems
  • To isolate a pipeline to ensure that cathodic protection or stray electricity currents do not cause increased corrosion, or cause a hazard
  • To isolate piping systems where dissimilar metals are present
  • To eliminate static loading charge transfer in discharge or loading operations at oil storage terminals

    Gasket Type:
    Type E (Full Face Gasket)
    This gasket kit provides complete protection of both flange faces. The gasket has same outside diameter of flanges. This feature will prevent collection of foreign matter between the flange faces to ensure complete cathodic isolation.
    Type F (Ring Gasket)

    This gasket is manufactured to fit only the raised face surface of the flanges. Outside diameter of the gasket is designed to be slightly less than the inside diameter of the bolt circle. It is recommended that the flanges be wrapped to prevent foreign material from "shorting out" the flanges.


    Performance of Neoprene Coated Phenolic Gaskets

    Material
    Dielectric Strength
    Water Absorption
    Compressive Strength
    Maximum Temperature
    Plain Faced Phenolic
    500Volts/Mil
    1.6%
    25,000psi
    -54 to +104 oC
    Neoprene Faced Phenolic
    500Volts/Mil
    1.6%
    25,000psi
    -54 to +79 oC
