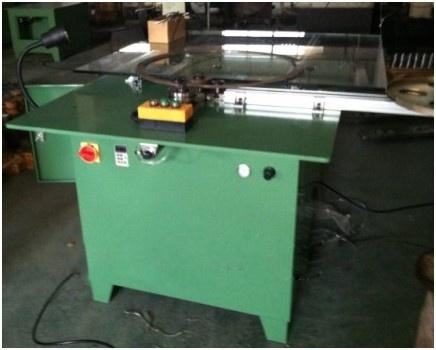

Medium Size Semi-Automatic Winding Machine

This machine was designed to winding gasket from 150 to 1200mm diameter spiral wound gasket. Both manual model and automatic model available. Can winding any shape of SWG


Send Inquiry


Description
Both manual model and automatic model available.

Specification as following:

KXT E1200S Medium size winding machine

STYLE

KXT E1200S-B Manual

KXT E1200S-C Semi-automatic

Producing ability

spiral wound gasket with or without inner ring

spiral wound gasket with or without inner ring

Special function

any shape of SWG

any shape of SWG

SWG thickness

4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)

4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)

Automatic function

/

PLC size controlling,
semi-Automatic spot welding

Maximum gasket OD

1000mm

1000mm

Minimum gasket ID

100mm

100mm

Total power

2.2kw

8kw

Spindle motor power

1.5kw

1.5kw

welder power

/

6kw

Frequency Converter

2.2G

2.2G

PLC

/

xinjie

Power supply voltage

380V/220V for option, 3 phases

380V/220V for option, 3 phases

linear speed

0-800mm/s

0-800mm/s

Air compressor

0.6—0.8 MPA

0.6—0.8 MPA

Machine measurement

1680*1500*920MM

1680*1500*950MM

Machine net weight

280 kg

300 kg
