What Are Expanded Graphite Gaskets?

In the demanding world of industrial sealing, reliability is non-negotiable. Expanded graphite gaskets, also known as flexible graphite gaskets, represent a pinnacle of sealing technology. Manufactured from pure graphite that has been exfoliated and expanded, these gaskets create an exceptionally effective barrier against leaks. Unlike traditional materials, expanded graphite is naturally inert, highly resilient, and capable of conforming to irregular flange surfaces. This makes it an indispensable solution for a vast array of critical applications where safety and performance are paramount.

At Kaxite Sealing, we specialize in engineering high-performance sealing solutions. Our expanded graphite gaskets are produced using rigorously controlled processes to ensure consistent quality, optimal density, and superior sealing integrity from the first installation to the last.

Key Advantages of Kaxite Sealing Expanded Graphite Gaskets

• Exceptional Thermal Stability: Perform reliably in continuous service from cryogenic temperatures up to 3000°F (1650°C) in non-oxidizing atmospheres, and up to 900°F (482°C) in oxidizing environments.
• Superior Chemical Resistance: Inert to most chemicals, acids, and solvents, providing excellent resistance to corrosion and preventing contamination of process media.
• Outstanding Conformability & Sealability: The soft, pliable nature of expanded graphite allows it to flow into minor flange imperfections, creating a tight, leak-free seal with relatively low bolt load.
• Low Creep Relaxation: Maintains bolt load over extended periods and thermal cycles better than many non-metallic gaskets, reducing the need for frequent re-torquing.
• High Compressibility and Recovery: Can be compressed significantly and will rebound effectively after decompression, accommodating system vibrations and pressure fluctuations.
• Electrically & Thermally Conductive: Provides grounding across flanged joints and facilitates efficient heat transfer where required.
• No Asbestos or Chlorides: A safe, environmentally friendly sealing material suitable for sensitive applications like food, pharmaceutical, and ultra-pure water systems.

Technical Parameters & Specifications

The performance of an expanded graphite gasket is defined by its physical and mechanical properties. Kaxite Sealing products are manufactured to meet and exceed international standards, ensuring consistent performance. Below are the key parameters for our standard expanded graphite sheet material.

Standard Gasket Styles and Configurations

Kaxite Sealing offers expanded graphite gaskets in various forms to suit specific application requirements:

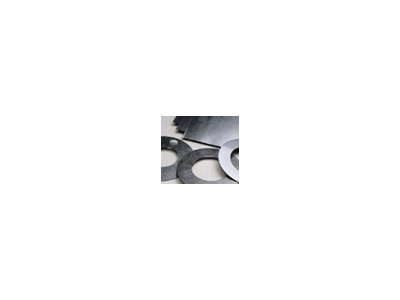

• Plain Sheets: Die-cut or water-jet cut into any custom shape from rolls or sheets.

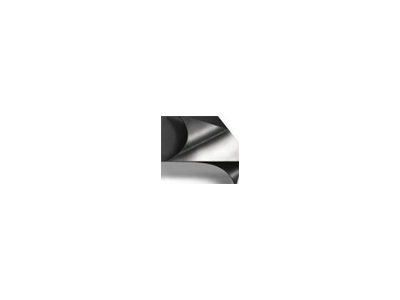

• Corrugated/Metallic Foil Faced: Graphite laminated to a thin stainless steel foil (e.g., 316SS) for enhanced handling strength and reduced flange sticking.
• Insertion Gaskets: Expanded graphite inserted into grooved metal core rings (usually Carbon Steel or 304/316 Stainless Steel) for high-pressure applications.
• Jacketed Gaskets: A metal jacket (often stainless steel) fully encloses the graphite filler, containing it and providing excellent blow-out resistance.
• Spiral Wound Gaskets with Graphite Filler: Combining a metal winding (V-profile) with expanded graphite filler for robust performance in a wide range of pressures and temperatures.

Frequently Asked Questions (FAQ)

Q: What are the primary applications for expanded graphite gaskets?
A: Expanded graphite gaskets are incredibly versatile. Their most common applications include heat exchangers (shell & tube, plate), boiler manways, turbine casings, exhaust systems, chemical processing equipment (reactors, columns, pumps, valves), flue gas ducting, and in industries such as power generation, oil & gas, chemical, petrochemical, pharmaceutical, and food processing. They are particularly favored for services involving high temperatures, aggressive chemicals, or where fire safety is a concern.

Q: Can expanded graphite gaskets be used for all types of fluids and gases?
A: While expanded graphite is resistant to a vast majority of media, including strong acids, alkalis, and organic solvents, there are a few exceptions. It is not recommended for use with strong oxidizing agents like fuming nitric acid, concentrated sulfuric acid above certain temperatures, or bromine trifluoride. Always consult the chemical compatibility charts and Kaxite Sealing's technical team for your specific media.

Q: How do I select the correct thickness and density for my application?
A: Selection depends on flange conditions, pressure, temperature, and medium. Standard sheet thicknesses range from 0.5mm (0.020") to 3.0mm (0.125"). For uneven or pitted flanges, a thicker, softer grade may be needed for better conformity. For high-pressure applications or with insertion/spiral wound gaskets, a higher density grade is typically used. Kaxite Sealing provides detailed selection guidelines and engineering support to ensure optimal performance.

Q: Are there any special handling or installation requirements?
A> Yes. Although robust in service, expanded graphite sheets are somewhat delicate before installation. They should be kept clean, dry, and stored flat. Avoid folding or creasing. During installation, ensure flanges are clean, aligned, and parallel. Use a controlled bolt tightening sequence (criss-cross pattern) to achieve a uniform load. It is generally recommended not to use liquid gasket sealants or sprays with pure expanded graphite gaskets, as they can impede its natural sealing properties.

Q: What is the difference between "expanded graphite" and "exfoliated graphite"?
A> The terms are often used interchangeably in the gasket industry. Technically, the process of "exfoliation" refers to the rapid heating of intercalated graphite flakes, causing them to expand or "exfoliate" into a low-density vermiform structure. This exfoliated graphite is then mechanically compressed into sheets or foil, becoming the material we call "expanded graphite." So, exfoliation is a key step in creating the base material for expanded graphite gaskets.

Q: Why choose Kaxite Sealing expanded graphite gaskets over other brands?
A> Kaxite Sealing is committed to excellence. Our gaskets are manufactured from premium raw materials under strict quality control, resulting in consistent density, purity, and performance. We offer a wide range of standard and custom configurations, backed by deep technical expertise. Our products are tested to relevant ASTM and ISO standards, and we provide full traceability and material certifications. Choosing Kaxite Sealing means investing in reliability, safety, and long-term cost-effectiveness for your operations.

Q: How do expanded graphite gaskets perform in fire-safe applications?
A> Expanded graphite gaskets exhibit excellent inherent fire-safe properties. Under extreme heat, the graphite does not melt or burn; it simply graphitizes further. It maintains its structural integrity and seal, preventing a cascading failure. This characteristic makes it a preferred choice for applications requiring API 607/API 6FB fire test certification, often in combination with metal components in spiral wound or jacketed designs.
