The Ultimate Guide to High-Performance PTFE Gaskets

In the demanding world of industrial sealing, where chemical resistance, extreme temperatures, and purity are non-negotiable, one material consistently stands out: Polytetrafluoroethylene (PTFE). At Kaxite Sealing, we have dedicated decades to mastering the science and engineering of PTFE gaskets, providing reliable, long-lasting sealing solutions for the most challenging applications. Our commitment to precision manufacturing and material innovation ensures that every gasket delivers optimal performance, safety, and cost-efficiency.

PTFE, often recognized by the brand name Teflon®, is a synthetic fluoropolymer celebrated for its inertness and broad operational capabilities. A PTFE gasket acts as a critical barrier, preventing leaks of fluids or gases between two mating surfaces. Unlike traditional materials, PTFE gaskets from Kaxite Sealing offer a unique combination of properties that make them indispensable in industries ranging from pharmaceutical and food processing to chemical processing and semiconductor manufacturing.

Why Choose Kaxite Sealing PTFE Gaskets?

Selecting the right gasket material is a critical engineering decision. Kaxite Sealing PTFE gaskets are engineered to excel where others fail. Here are the core advantages that define our products:

• Unmatched Chemical Resistance: PTFE is virtually inert, resisting attack from nearly all industrial chemicals, solvents, and aggressive media. This ensures integrity in highly corrosive environments.
• Exceptional Temperature Range: Our gaskets perform reliably from cryogenic temperatures as low as -200°C (-328°F) up to a continuous +260°C (+500°F), with short-term peaks even higher.
• Superior Non-Stick & Low Friction Properties: The naturally non-stick surface prevents adhesion of process media, ensuring easy clean-up and preventing product buildup that can compromise seal integrity.
• Excellent Electrical Insulation: PTFE is an outstanding dielectric material, making it ideal for applications requiring electrical isolation.
• High Purity & Compliance: Kaxite Sealing offers FDA-compliant, USP Class VI, and 3-A Dairy Grade PTFE materials, ensuring suitability for food, beverage, pharmaceutical, and biotech applications.
• Zero Moisture Absorption: PTFE does not absorb water or moisture, eliminating swelling or degradation that can occur with fibrous gasket materials.
• Long Service Life & Reliability: The inherent stability of PTFE translates to extended service intervals, reduced maintenance costs, and enhanced operational safety.

Kaxite Sealing PTFE Gasket Product Specifications & Data

Understanding the technical specifications is key to proper gasket selection. Below is a detailed overview of the standard properties and available configurations for Kaxite Sealing PTFE Gaskets.

Standard Material Properties

Available Forms & Styles

Kaxite Sealing provides PTFE gaskets in various forms to meet specific application requirements:

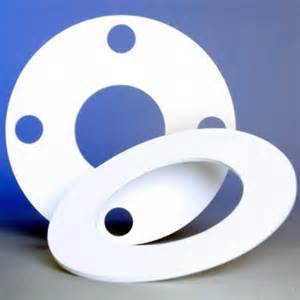

• Virgin PTFE Gaskets: Made from 100% pure PTFE resin, offering the highest chemical purity and electrical properties.

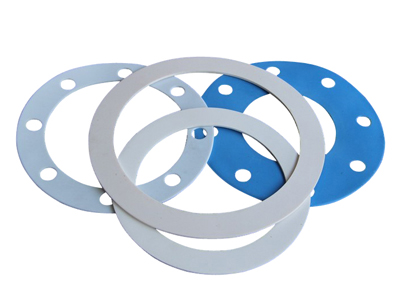

• Reinforced PTFE Gaskets: Incorporating fillers like glass, carbon, or bronze to enhance mechanical strength, creep resistance, and wear properties.

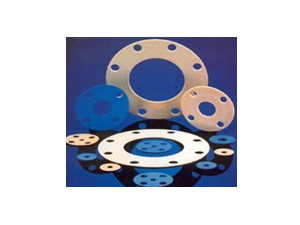

• Expanded PTFE (ePTFE) Gaskets: A highly flexible, compressible, and formable tape or sheet ideal for irregular surfaces and low bolt-load applications.
• PTFE Envelope Gaskets: Feature a corrosive-resistant PTFE jacket over a soft filler material (like compressed non-asbestos), combining chemical resistance with excellent sealability.
• Custom Machined PTFE Gaskets: Precisely CNC-machined from solid PTFE rods or sheets for complex geometries, large diameters, or critical tolerances.

Standard Sizes & Tolerances

Frequently Asked Questions (FAQ) About PTFE Gaskets

Q: What is the main difference between Virgin PTFE and Filled/Reinforced PTFE gaskets?

A: Virgin PTFE is pure, unfilled PTFE polymer. It offers the best possible chemical resistance and dielectric properties but is more susceptible to "cold flow" or creep under sustained load. Filled or reinforced PTFE incorporates materials like glass fiber, carbon, graphite, or bronze powder. These fillers significantly improve the compressive strength, reduce creep, enhance wear resistance, and improve thermal conductivity. The choice depends on the application: use virgin for ultra-pure or highly corrosive service; use filled versions for higher pressure, to reduce bolt load relaxation, or for abrasive services.

Q: How do I determine the correct thickness for my PTFE gasket?

A: Gasket thickness is selected based on flange conditions, pressure, temperature, and media. Thinner gaskets (1.5mm or less) generally offer better creep resistance and are suitable for high-pressure systems with smooth, flat flanges. Thicker gaskets (3mm and above) are better for compensating for flange misalignment, surface imperfections, or lower bolt loads. For standard ANSI B16.21 raised face flanges, 1.5mm thickness is common. Kaxite Sealing engineers can provide specific recommendations based on your flange design and operating conditions.

Q: Can PTFE gaskets be used for high-pressure applications?

A: Yes, but with important considerations. While PTFE has good strength, its tendency to creep requires careful design. For high-pressure services, reinforced PTFE grades (glass-filled, carbon-filled) are preferred as they resist deformation better. Proper flange surface finish (32 to 63 microinches Ra is ideal), adequate and evenly distributed bolt load, and the use of serrated or grooved flanges to grip the gasket are critical. It is essential to consult pressure-temperature ratings and follow guidelines, such as those in ASME B16.21, or contact Kaxite Sealing for application-specific engineering support.

Q: Are Kaxite Sealing PTFE gaskets suitable for oxygen service?

A: Absolutely, but only specific grades are approved. For oxygen and other strong oxidizer services, it is crucial to use clean, virgin PTFE that is free of any organic fillers or contaminants that could pose a fire risk. Kaxite Sealing supplies specially cleaned and packaged virgin PTFE gaskets that meet the stringent requirements for oxygen service, ensuring safety and compliance with industry standards like ASTM G93.

Q: How should PTFE gaskets be installed and torqued?

A: Correct installation is key to performance. First, ensure flanges are clean, aligned, and undamaged. Place the gasket centered on the flange. Use a cross-bolt tightening pattern (star pattern) to apply torque in steps—typically 30%, 60%, and finally 100% of the recommended torque value. This ensures even compression and prevents distortion. Recommended bolt torque depends on gasket size, thickness, and PTFE type. Over-torquing can cause excessive cold flow and failure, while under-torquing can lead to leakage. Refer to Kaxite Sealing's installation guides or ASME PCC-1 for detailed procedures.

Q: What industries most commonly use your PTFE gaskets?

A: Kaxite Sealing PTFE gaskets serve a vast array of industries due to their versatility. Key sectors include: Chemical Processing (for reactors, pipes, and valves handling acids and alkalis), Pharmaceutical & Biotechnology (for sterile fluid paths and CIP/SIP systems), Food & Beverage (for processing lines requiring FDA compliance), Semiconductor Manufacturing (for ultra-pure gas and chemical delivery), Oil & Gas (for sealing in corrosive wellhead and refining environments), and General Industrial Manufacturing where reliability against a wide range of chemicals is needed.

Selecting the Right PTFE Gasket with Kaxite Sealing

The optimal performance of a gasket relies on perfect alignment between material properties and service conditions. Kaxite Sealing provides more than just a product; we offer engineering expertise. Our team can assist you in navigating the selection process by evaluating your specific parameters:

• Process Media: Identify all chemicals, concentrations, and phases (liquid, gas).
• Temperature & Pressure: Provide both operating and design (peak) conditions.
• Flange Details: Specify type (RF, FF, RTJ), material, surface finish, and bolt information.
• Regulatory Requirements: Identify any needed certifications (FDA, USP, 3-A, ATEX, etc.).
• Application Criticality: Consider consequences of failure for safety and environmental factors.

With this information, Kaxite Sealing can recommend the ideal PTFE formulation—be it virgin, glass-filled, carbon-filled, or our specialized ePTFE—and manufacture the gasket to precise dimensions, ensuring a leak-free seal that enhances the safety, efficiency, and longevity of your operations.
