In the demanding world of industrial sealing, where extreme pressures and temperatures are the norm, the integrity of your connections is paramount. For critical applications in oil and gas, petrochemical, and high-pressure processing systems, a specific, highly engineered solution stands out: the Ring Joint Gasket (RJG). Unlike standard gaskets, the ring joint gasket is a precision-machined, metallic sealing element designed to create a superior, leak-proof seal in conjunction with specially grooved flanges. At Kaxite Sealing, we leverage decades of metallurgical expertise to manufacture RJGs that meet and exceed the most rigorous international standards, ensuring safety, reliability, and longevity for your most vital operations.

Understanding Ring Joint Gasket Design and Function

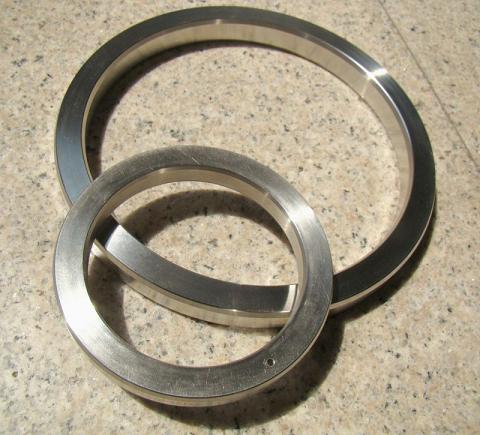

A ring joint gasket is a solid metal ring with an oval or octagonal cross-section. It is seated in a matching machined groove in the flange faces of a connection. When the flanges are bolted together, the gasket is compressed, creating a highly effective pressure-energized seal. The metal-to-metal contact creates a seal along two narrow, concentric lines, making it exceptionally resistant to leakage under high pressure, thermal cycling, and challenging media. This design is mandated for ASME B16.5 Ring Joint Facings (RTJ) and is a staple in API 6A specifications for wellhead and Christmas tree equipment.

Kaxite Sealing Ring Joint Gasket: Key Parameters and Specifications

Our manufacturing process ensures every Kaxite Sealing RJG delivers consistent performance. Below are the critical parameters that define our product range.

Material Grades and Properties

Material selection is crucial for corrosion resistance, temperature capability, and yield strength. We offer a comprehensive range:

• Soft Iron (ASTM A105): A carbon steel material suitable for general service with temperatures up to 450°C (842°F).
• Low Carbon Steel: Provides good ductility and sealing performance for standard applications.
• Stainless Steel 304/304L, 316/316L: Offers excellent corrosion resistance against a wide range of chemicals and is ideal for corrosive service environments.
• Alloy 20: Superior resistance to sulfuric acid and other aggressive chemicals.
• Monel 400 & 500: Nickel-copper alloys with outstanding resistance to seawater, hydrofluoric acid, and alkaline solutions.
• Inconel 600 & 625: Nickel-chromium alloys designed for extreme temperatures, oxidation resistance, and high-strength applications.
• Hastelloy C276: A nickel-molybdenum-chromium alloy with exceptional resistance to pitting and crevice corrosion in severe environments.
• Titanium: Excellent strength-to-weight ratio and corrosion resistance, particularly in chloride environments.
• Copper: Used for its thermal conductivity and malleability in specific services.

Standard Sizes and Pressure Ratings

Kaxite Sealing RJGs are manufactured to fit standard flange dimensions and pressure classes as per ASME B16.20, API 6A, and other relevant specifications. Our gaskets cover:

• Flange Sizes: From 1/2" nominal bore (NB) up to 24" NB and larger for custom applications.
• Pressure Classes: ANSI Classes 150, 300, 400, 600, 900, 1500, 2500, and 4500. API 6A ratings include 5,000 psi, 10,000 psi, 15,000 psi, and 20,000 psi.

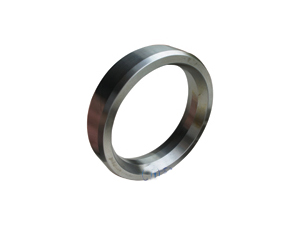

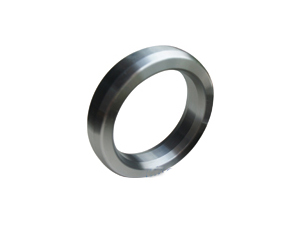

• Cross-Section Types: Oval (R) and Octagonal (RX, BX). Octagonal rings provide a more efficient seal with lower bolt load requirements.

Technical Data Table

Frequently Asked Questions (FAQ) About Ring Joint Gaskets

Q: What is the main difference between an Oval and an Octagonal ring joint gasket?

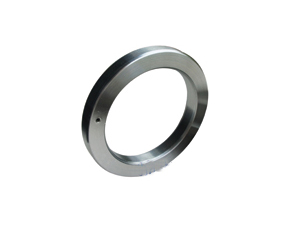

A: The primary difference lies in the cross-sectional shape and sealing mechanics. Oval rings have a rounded cross-section and seal by deforming into the flange groove. Octagonal rings (RX) have a flat-sided cross-section, creating a larger sealing surface area and requiring less bolt load to achieve an effective seal. BX rings are a specific octagonal type for API 6BX flanges, which are self-energizing at high internal pressure. Octagonal rings are generally preferred for new installations due to their sealing efficiency.

Q: Can a ring joint gasket be reused?
A: It is strongly discouraged and generally not recommended. During the initial bolt-up, the metal gasket plastically deforms to conform perfectly to the flange groove. Reusing a gasket that has already been compressed and work-hardened will not guarantee the same leak-tight seal, as it cannot deform properly a second time. For critical service, always use a new, unused Kaxite Sealing ring joint gasket to ensure system integrity.

Q: How do I select the correct material for my application?
A: Material selection depends on three main factors: the fluid media (corrosivity), operating temperature, and design pressure. For example, carbon steel (Soft Iron) is standard for non-corrosive hydrocarbons. For sour service (H2S present), NACE-compliant materials like certain grades of stainless steel or nickel alloys are mandatory. For high-temperature steam, a material with high oxidation resistance like Inconel may be required. Consulting the piping specification or a Kaxite Sealing engineer is essential for correct selection.

Q: What are the correct bolt tightening procedures for a ring joint flange connection?
A: Proper bolt-up is critical. Always follow a cross-pattern tightening sequence (star pattern) in multiple stages to ensure even compression of the gasket. Use a calibrated torque wrench or, preferably, hydraulic tensioning or bolt torquing equipment to achieve the precise bolt load specified by the flange standard (e.g., ASME PCC-1). Under-tightening can cause leakage, while over-tightening can damage the flanges or the gasket itself.

Q: Are Kaxite Sealing RJGs suitable for offshore and subsea applications?
A: Absolutely. We manufacture RJGs to stringent API, ISO, and NORSOK standards required for offshore oil and gas production. Our gaskets are supplied with full material certification (CMTR) and can be designed for subsea applications where reliability is non-negotiable. Materials like Duplex stainless steel or Inconel are commonly selected for these harsh, corrosive environments.

Q: What does the marking on a ring joint gasket signify?
Q: What does the marking on a ring joint gasket signify?
A: The markings stamped on the gasket are vital for traceability and correct installation. They typically include the material grade (e.g., "316"), the nominal size and pressure class (e.g., "6-900" for 6-inch, Class 900), the ring type (e.g., "R" or "RX"), and often a heat number for material traceability. Kaxite Sealing gaskets are clearly marked to prevent installation errors and ensure compliance with quality assurance protocols.

Applications of Kaxite Sealing Ring Joint Gaskets

The robustness of our RJGs makes them indispensable across several high-performance industries. Key application areas include:

• Oil & Gas Production: Wellheads, Christmas trees, manifolds, flow lines, and separator connections where pressures are extremely high.
• Refining & Petrochemical: High-pressure and high-temperature reactor connections, hydrocracker units, and critical process piping.
• Power Generation: Main steam lines, boiler feedwater systems, and other high-energy piping in fossil fuel and nuclear plants.
• Chemical Processing: Handling aggressive and hazardous chemicals where leak prevention is a major safety concern.
• Subsea Equipment: Connecting subsea pipelines, trees, and control modules where reliability is paramount and maintenance is prohibitively expensive.
