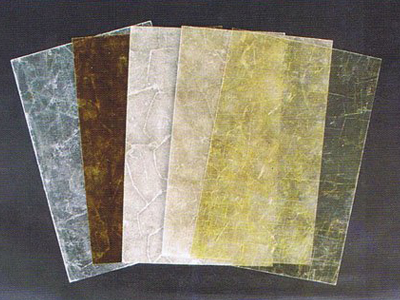

Introduction to Mica Sheets

For engineers, designers, and procurement specialists across industries requiring superior thermal and electrical insulation, the Mica Sheet stands as an indispensable material solution. At Kaxite Sealing, we have dedicated years to refining mica-based products, understanding that performance, reliability, and consistency are non-negotiable in high-stakes applications. Natural mica, a crystalline silicate mineral, is split into thin, flexible sheets that exhibit a remarkable combination of properties: exceptional dielectric strength, superb thermal stability, and excellent chemical resistance. These inherent characteristics make mica sheets a first-choice material for insulating components in electric motors, generators, furnaces, toasters, and various high-temperature industrial equipment. Kaxite Sealing leverages both natural mica and advanced reconstituted mica technologies to provide sheets that meet the precise and often demanding specifications of modern manufacturing and engineering projects.

Product Parameter Specifications

Kaxite Sealing offers a comprehensive range of mica sheets, engineered to cater to diverse application requirements. Our product portfolio is segmented primarily by the base material and bonding agent used, which directly influences the sheet's performance profile. Below is a detailed breakdown of our core product parameters.

1. Types of Mica Sheets

• Natural Mica Sheets (Muscovite & Phlogopite): Sourced from high-quality mica blocks, these sheets offer the purest form of mica insulation with outstanding clarity and flexibility. Muscovite is preferred for its higher dielectric strength, while Phlogopite excels in continuous high-temperature environments.
• Reconstituted Mica Sheets (Micanite): Manufactured from mica splittings bonded with high-temperature resistant resins. This process allows for larger, more uniform sheets with fewer natural imperfections, often resulting in more consistent electrical properties and enhanced mechanical strength.

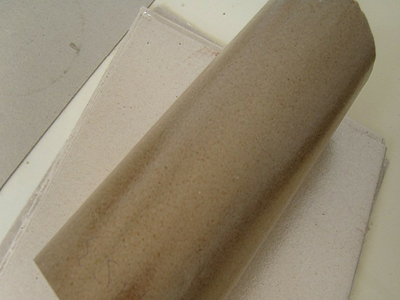

• Flexible Mica Sheets: Typically made with silicone resin or other flexible binders, these sheets can be bent and formed without cracking, ideal for wrapping irregular shapes like commutators or heating elements.
• Rigid Mica Sheets (Hardboard): Manufactured under high heat and pressure with rigid binders, these sheets offer superior mechanical strength and dimensional stability for use as structural insulation plates or slot liners.

2. Detailed Parameter Table

The following table provides a technical comparison of standard Kaxite Sealing mica sheet offerings. Specifications can be customized upon request.

3. Customization & Fabrication

Kaxite Sealing understands that off-the-shelf dimensions rarely suffice. We provide extensive fabrication services:

• Precision Cutting & Punching: Sheets can be die-cut, laser-cut, or stamped to specific shapes (circles, rectangles, complex geometries) with tight tolerances.
• Lamination: Mica sheets can be laminated with other materials like glass cloth, polyester film (MYLAR), or copper foil to create composite insulation systems.
• Slitting & Taping: Production of narrow-width rolls or tapes for automated winding processes in coil production.
• Surface Treatments: Application of adhesives or release films as required for specific assembly methods.

Mica Sheet FAQ (Frequently Asked Questions)

Q: What is the primary difference between natural and reconstituted mica sheets?

A: Natural mica sheets are directly split from mined mica blocks, preserving the natural crystal structure. They offer very high dielectric strength and thermal stability but may have size limitations and natural variations. Reconstituted mica sheets (micanite) are made by breaking mica into splittings, then reassembling them with a binder under heat and pressure. This process allows for larger, more consistent sheets with fewer defects and can be engineered for specific mechanical or thermal properties, though the binder may influence the maximum continuous temperature.

Q: How do I select the correct mica sheet thickness for my electrical insulation application?

A: The required thickness depends primarily on the operating voltage and the required dielectric strength. As a rule of thumb, divide the peak operating voltage (in volts) by the dielectric strength of the mica sheet (in V/mm) to get a minimum thickness. Always incorporate a significant safety factor (often 2x or more) to account for voltage spikes, environmental conditions, and long-term aging. For high-voltage applications, consulting with Kaxite Sealing's technical team is crucial for a safety-compliant design.

Q: Can mica sheets be machined or formed after purchase?

A: Yes, but the method depends on the type. Rigid mica sheets can be machined using standard workshop tools like drills, saws, and mills, though carbide tips are recommended due to mica's abrasiveness. Flexible sheets can be cut with scissors, knives, or die-cutters. For complex forming, flexible sheets can be cold-formed around mandrels. Natural mica can be delicately split thinner or cut. We generally recommend having sheets fabricated to net shape by Kaxite Sealing to ensure edge integrity and avoid delamination.

Q: Are Kaxite Sealing mica sheets resistant to chemicals and radiation?

A: Mica itself is highly inert and exhibits excellent resistance to most acids, alkalis, oils, solvents, and water. It is also non-flammable and resistant to radiation, making it suitable for harsh chemical and nuclear environments. However, the resistance of the final sheet product also depends on the binder used in reconstituted or bonded sheets. Silicone and inorganic binders offer superior chemical resistance compared to some organic resins. Please specify your chemical exposure when inquiring.

Q: What are the key considerations for using mica sheets in high-temperature applications above 500°C?

A: For extreme temperatures, the choice of mica type and binder is critical. Phlogopite mica generally performs better than Muscovite at sustained temperatures above 600°C. For the highest temperatures (800°C+), reconstituted sheets using inorganic silicate binders or, in some cases, binder-free layered assemblies are necessary, as organic binders will pyrolyze. Thermal expansion, thermal conductivity, and the potential for outgassing must also be evaluated in the system design.

Q: How does Kaxite Sealing ensure the quality and consistency of its mica sheet products?

A: Kaxite Sealing implements a rigorous quality management system. We start with stringent raw material selection, grading mica splittings by size and quality. Our manufacturing process is controlled with precise parameters for temperature, pressure, and curing. Every production batch undergoes key tests, including dielectric strength verification, thickness calibration, and visual inspection for voids or delamination. Certificates of Analysis with test data are available for all orders, and we can comply with various international standards (UL, IEC, etc.) upon request.

Q: Can you supply mica sheets combined with other materials?

A: Absolutely. A major strength of Kaxite Sealing is our ability to engineer composite materials. Common combinations include mica laminated with glass fiber cloth for added tensile strength, with polyester film for moisture barrier properties, or with pressure-sensitive adhesive (PSA) backings for easy installation. We work with clients to develop the optimal multi-layer insulation solution for their specific thermal, electrical, and mechanical needs.
