Complete Guide to Flange Insulation Gasket Kits for Superior Pipeline Protection

In industrial pipeline and bolted flange connections, controlling stray electrical currents and preventing galvanic corrosion is not just an option—it’s a necessity for system integrity, safety, and longevity. This is where a properly specified Flange Insulation Gasket Kit becomes a critical component. These kits provide a complete, engineered solution to electrically isolate flanged joints, stopping the flow of corrosive current and protecting valuable assets from premature failure. Unlike standard gaskets, an insulation kit incorporates multiple specialized components that work together to create a reliable dielectric barrier.

Kaxite Sealing, a leader in advanced sealing solutions, manufactures premium Flange Insulation Gasket Kits designed to meet the rigorous demands of oil & gas, chemical processing, water treatment, and power generation industries. Our kits are engineered for performance, durability, and ease of installation, ensuring your flanged connections remain secure and corrosion-free for years to come.

What is a Flange Insulation Gasket Kit?

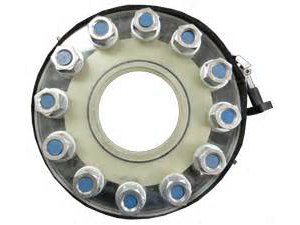

A Flange Insulation Gasket Kit is a comprehensive assembly used to electrically isolate two flanged surfaces. Its primary purpose is to prevent galvanic corrosion, which occurs when dissimilar metals in the presence of an electrolyte (like water or process fluid) create a battery effect, leading to rapid metal deterioration. By breaking the electrical circuit, the insulation kit halts this corrosive process.

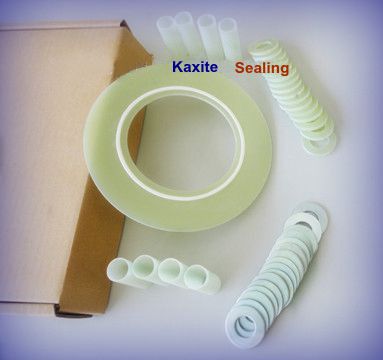

A typical kit from Kaxite Sealing includes the following key components:

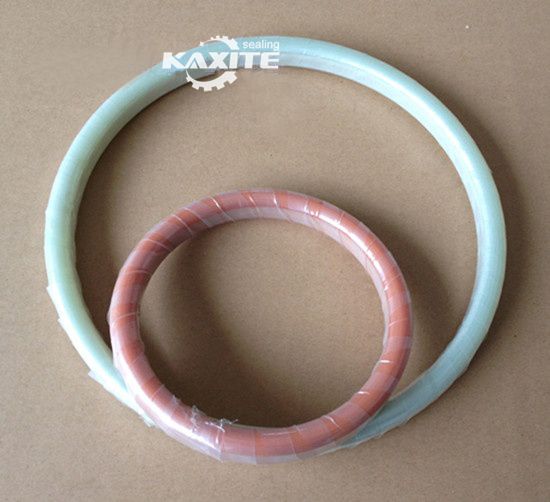

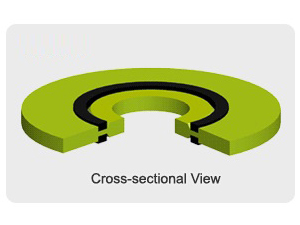

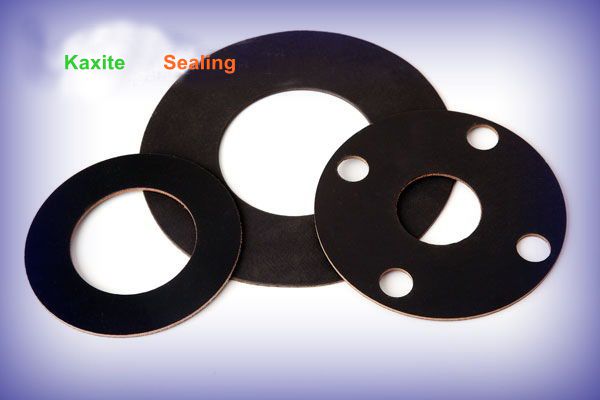

• Insulation Gasket: The core dielectric layer, usually made from polymer materials like PTFE, FEP, or specialty composites.
• Insulation Sleeves (Bushings): Fit over the bolts or studs to prevent them from creating an electrical bridge between the two flanges.
• Insulation Washers: Placed under the bolt head and the nut to isolate the fasteners from the flange surfaces.
• Steel Washers: Used on the outer sides of the insulation washers to distribute the load and prevent over-compression of the insulating components.
• Centralizing Ring (Optional): A metal or plastic ring that helps align the gasket during assembly, ensuring proper fit.

Key Product Parameters & Specifications of Kaxite Sealing Kits

Selecting the correct insulation kit requires careful attention to technical parameters. Below are the critical specifications for our standard and custom kits.

1. Material Composition & Properties

The performance hinges on the material selection for each component.

2. Dimensional Specifications & Pressure Ratings

Kits are tailored to flange standards (ASME B16.5, B16.47, DIN, etc.). Key dimensions include:

Note: Pressure ratings are dependent on gasket material and flange class. Dielectric strength is a measure of the electrical insulation capability.

3. Temperature and Chemical Compatibility

• Standard Temperature Range: -50°F to +500°F (-46°C to +260°C) for PTFE-based kits. Special materials extend this range.
• Chemical Resistance: PTFE components are virtually inert, resisting almost all industrial chemicals, solvents, and acids.
• PH Range: Full range (0-14) compatible.

Flange Insulation Gasket Kits: Frequently Asked Questions (FAQ)

Q: When is a Flange Insulation Gasket Kit required?

A: A kit is essential in several scenarios: 1) When connecting pipelines made of dissimilar metals (e.g., carbon steel to stainless steel). 2) In cathodic protection systems to isolate protected sections. 3) For grounding isolation in electrical hazard areas. 4) In systems where stray alternating current (AC) or direct current (DC) is present. 5) To prevent corrosion under insulation (CUI) on insulated pipelines.

Q: Can I use just the insulating gasket without the sleeves and washers?

A: No, this is a common and critical mistake. The bolts themselves will create a direct metal-to-metal contact between the two flanges, forming an electrical bridge that completely bypasses the insulating gasket. This renders the insulation ineffective. A full Kaxite Sealing kit, including sleeves and washers, is required to ensure complete isolation of the circuit.

Q: How do I install a Flange Insulation Kit correctly?

A: Proper installation is key. First, ensure flange faces are clean, dry, and undamaged. Slide insulation sleeves onto each bolt or stud. Place the insulation gasket between the flanges, using a centering ring if provided. Insert the sleeved bolts through the flanges. On one side, place an insulation washer against the flange, followed by a steel washer, then the nut. On the other side (bolt head side), the sequence is steel washer first, then insulation washer. Tighten bolts in a star-pattern sequence to the specified torque value to ensure even compression.

Q: How do I determine the right kit size and material for my application?

A: You need the exact flange specifications: Nominal Pipe Size (NPS), Flange Class (e.g., 150#, 300#), bolt hole diameter, number of bolts, and bolt circle diameter. Also, critical application data is required: fluid media, operating temperature and pressure, and the types of metals being joined. Kaxite Sealing's technical team can assist with material selection based on chemical compatibility and thermal requirements.

Q: Are these kits reusable?

A: Generally, Flange Insulation Gasket Kits are not designed for reuse. Once compressed during installation, the insulating gasket and washers undergo permanent deformation to create a seal. Disassembling and reusing them can compromise the seal integrity and dielectric properties. It is always recommended to use a new Kaxite Sealing kit during any flange reassembly.

Q: What standards do Kaxite Sealing kits comply with?

A: Our kits are manufactured to meet or exceed relevant industry standards, including but not limited to ASME B16.21 for non-metallic flat gaskets, NACE MR0175/ISO 15156 for sour service environments, and are tested for dielectric strength per ASTM D149. Materials are also compliant with FDA and USP Class VI regulations for relevant industries.

Q: Can you provide custom-designed insulation kits for non-standard flanges?

A: Absolutely. Kaxite Sealing specializes in engineering custom sealing solutions. We can manufacture kits for large diameters, irregular shapes, special alloy components, or extreme service conditions (cryogenic, high-temperature, high-pressure). Provide us with your drawings and specifications for a tailored solution.

Advantages of Choosing Kaxite Sealing Flange Insulation Gasket Kits

• Complete, Ready-to-Install Kits: Every kit contains all necessary components in one package, sized and counted for your specific flange, eliminating guesswork and missing parts on-site.
• Premium Material Quality: We use only high-purity, consistently formulated polymers and precisely manufactured metal components to ensure reliable performance and long service life.
• Engineered for Safety: Our designs focus on maintaining dielectric integrity even under high bolt loads and system pressures, reducing the risk of catastrophic corrosion failure.
• Technical Expertise & Support: Backed by decades of experience, our engineering team provides application support to help you select, install, and maintain your insulation systems correctly.
• Traceability & Certification: Full material traceability and compliance certification are available for critical projects, providing documentation for quality assurance and safety audits.
