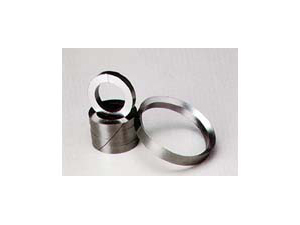

What is a Die-formed Graphite Ring?

In the demanding world of industrial sealing, where reliability under extreme conditions is non-negotiable, the Die-formed Graphite Ring stands as a pinnacle of engineering. A die-formed graphite ring is a specialized sealing component manufactured by mechanically compressing high-purity flexible graphite foil into precise, consistent shapes using precision dies and molds. Unlike spiral-wound or stamped rings, the die-forming process creates a homogeneous, void-free structure with exceptional dimensional stability and uniform density throughout the component. This advanced manufacturing technique, pioneered and perfected by Kaxite Sealing, results in a seal that offers unparalleled performance in high-temperature, high-pressure, and corrosive applications. The inherent properties of graphite—such as self-lubrication, thermal conductivity, and chemical inertness—are fully optimized in this dense, coherent form, making it an indispensable solution for flanges, heat exchangers, valves, and various critical connections in chemical processing, power generation, oil & gas, and aerospace industries.

Key Features & Advantages of Kaxite Sealing Die-formed Graphite Rings

The superiority of Kaxite Sealing's die-formed graphite rings stems from a combination of material excellence and precision engineering. Our rings are not merely products; they are reliability solutions engineered for the most challenging environments.

• Exceptional Thermal Stability: Capable of continuous operation from cryogenic temperatures up to 3000°F (1650°C) in non-oxidizing atmospheres, and up to 750°F (400°C) in oxidizing environments, with no loss of sealing integrity.
• Superior Chemical Resistance: Inert to most industrial chemicals, acids, alkalis, and solvents, ensuring long-term performance in aggressive process media.
• Outstanding Compression and Recovery: The die-formed structure allows for excellent sealability at low bolt loads and maintains resilience under cyclic thermal and pressure loads, compensating for flange movement and relaxation.
• High Density and Homogeneity: The manufacturing process eliminates voids and inconsistencies, providing a uniform seal face that minimizes leakage paths and ensures consistent performance across the entire ring.
• Self-Lubricating and Non-Galling: The graphite layers slide easily, preventing galling on flange faces and allowing for easier assembly and disassembly, even after long service periods.
• Conforms to Irregular Surfaces: The flexible yet dense material can conform to minor flange imperfections, providing an effective seal without requiring perfect surface finishes.
• Long Service Life and Reduced Maintenance: Resistant to aging, creep relaxation, and thermal cycling, leading to extended gasket life and reduced downtime for replacements.

Technical Specifications & Product Parameters

Kaxite Sealing offers a comprehensive range of die-formed graphite rings to meet diverse application requirements. Our specifications are meticulously controlled to guarantee performance.

Standard Material Properties

Standard Size Ranges & Configurations

Kaxite Sealing die-formed graphite rings are available in a vast array of standard and custom sizes.

• Inner Diameter (ID): From 0.25 inches (6 mm) upwards.
• Outer Diameter (OD): Up to 120 inches (3000 mm) and beyond for custom orders.
• Cross-Section (Width x Thickness): Standard cross-sections from 1/16" x 1/16" (1.5mm x 1.5mm) to 1" x 1" (25mm x 25mm). Rectangular, square, and custom profiles available.
• Standards Compliance: Rings can be manufactured to meet dimensions per ASME B16.20, DIN, EN, JIS, and other international standards for pipe flanges and heat exchangers.
• Optional Enhancements:
  • Inner/Outer Metal Rings: For added mechanical strength and handling (Self-Centering/Retaining Rings).
  • Corrosion-Resistant Foil Laminates: Inconel, stainless steel, or titanium foil facings for highly oxidizing or specific chemical environments.
  • Special Coatings: Anti-oxidant coatings (e.g., phosphate, metal oxide-based) to extend service life in high-temperature oxidizing atmospheres.
  • Segmented Designs: For large diameters, facilitating easier installation and handling.

Applications of Die-formed Graphite Rings

The unique property profile of Kaxite Sealing die-formed graphite rings makes them suitable for a multitude of critical sealing points.

• Heat Exchangers (Shell & Tube, Plate): Gaskets for channels, covers, and divider plates.
• Pipe Flanges: Raised face (RF), flat face (FF), and ring-type joint (RTJ) flanges in chemical and petrochemical plants.
• Valves & Pumps: Stem packings, bonnet gaskets, and seal rings in control valves, gate valves, and pump casings.
• High-Temperature Equipment: Doors, sight glasses, and joints in furnaces, reformers, and incinerators.
• Compressors & Turbines: Sealing for casing joints and exhaust connections.
• Aerospace & Automotive: Exhaust systems, fuel cells, and high-temperature test rigs.
• Semiconductor Manufacturing: Seals in CVD, diffusion, and etching equipment requiring ultra-purity.

Frequently Asked Questions (FAQ) About Die-formed Graphite Rings

General & Technical Questions

What is the main difference between a die-formed graphite ring and a spiral-wound gasket with graphite filler?
A die-formed ring is a solid, homogeneous piece of compressed graphite with uniform density throughout. A spiral-wound gasket is a V-shaped metal strip wound with a graphite filler strip. The die-formed ring offers better creep resistance, higher temperature capability in non-oxidizing settings, and no potential for "blow-out" of filler material. It is often used in more severe service.

Can die-formed graphite rings be used for high-pressure applications?
Yes, absolutely. The high density and structural integrity of Kaxite Sealing's die-formed rings make them excellent for high-pressure applications. They are commonly used in ASME Class 900, 1500, and 2500 flange ratings. For extreme pressures, they are often used in combination with inner and outer metal rings (kammprofile or double-jacket style) to prevent extrusion and provide mechanical support.

What are the temperature limits for these rings?
In continuous service in inert or reducing atmospheres (e.g., hydrogen, nitrogen, vacuum), Kaxite graphite rings can perform up to 3000°F (1650°C). In oxidizing atmospheres (air), the practical upper limit is around 750°F (400°C) for long-term service. For intermittent oxidizing service, short-term exposure to 900°F (480°C) may be acceptable. Anti-oxidant coatings can extend the usable range in air.

How do I select the correct density for my application?
Density is crucial for performance. Higher density (e.g., 1.9 g/cm³ and above) offers better mechanical strength, extrusion resistance, and thermal conductivity, ideal for high-pressure or high-stress joints. Standard density (1.6-1.8 g/cm³) provides an excellent balance of sealability, compressibility, and recovery for most general applications. Kaxite Sealing engineers can help specify the optimal density based on your specific pressure, temperature, and flange design.

Installation & Handling

Are special precautions needed when handling and installing graphite rings?
Yes. Flexible graphite is somewhat brittle in handling. Avoid bending, twisting, or dropping the rings. They should be stored flat in a dry environment. During installation, ensure flange faces are clean, undamaged, and aligned. The ring should be centered on the flange. Use a criss-cross bolt tightening pattern and torque to the recommended values in multiple incremental steps to achieve uniform compression.

Can a die-formed graphite ring be re-used?
It is generally not recommended. Once compressed, the graphite undergoes plastic and elastic deformation. Reusing a ring may not provide the same sealing performance as a new one, as its recovery properties and original dimensions are altered. For critical applications, always install a new, unused Kaxite Sealing ring.

Do I need to use a sealing paste or lubricant?
No, and it is often advised against. Die-formed graphite rings are self-lubricating. Applying sealants can contaminate the graphite, potentially causing chemical reactions at high temperatures or creating a bonding effect that makes disassembly difficult. Clean, dry installation is best.

Material & Compatibility

Are Kaxite die-formed graphite rings suitable for oxygen service?
Standard flexible graphite rings are generally not recommended for pure oxygen or strong oxidizing agent service due to the risk of rapid oxidation. Special grades with anti-oxidant impregnation or metal foil cladding (like stainless steel) must be used. Always consult with Kaxite Sealing for application-specific advice on oxidizing media.

How do they perform in strong acids or alkalis?
Flexible graphite has excellent chemical resistance across nearly the entire pH spectrum. It is highly resistant to most acids (including hydrochloric, sulfuric, phosphoric) and alkalis. Exceptions are very strong oxidizing acids like concentrated nitric acid or oleum at high temperatures, which may attack the graphite.

What is the shelf life of a die-formed graphite ring?
When stored properly in its original packaging, in a cool, dry place away from direct sunlight and chemicals, a Kaxite Sealing graphite ring has an essentially indefinite shelf life. The material does not degrade or harden over time like elastomers.

Ordering & Customization

Can Kaxite Sealing produce non-standard sizes or special shapes?
Yes, customization is a core strength. We specialize in producing die-formed graphite rings in virtually any diameter, cross-section, and shape—including oval, rectangular, or complex geometries. We can also integrate metal inserts, create segmented designs, or apply proprietary coatings per your specifications.

What information do I need to provide when ordering?
To ensure you receive the correct product, please provide: 1) Detailed dimensional drawings or specifications (ID, OD, Width, Thickness), 2) Application details (fluid media, concentration, temperature, pressure), 3) Flange type and facing finish, 4) Any relevant industry standards (ASME, DIN, etc.), and 5) Quantity required. Our technical team is available to assist with any questions.

Why Choose Kaxite Sealing for Your Die-formed Graphite Rings?

Selecting Kaxite Sealing means partnering with a leader in advanced sealing technology. Our commitment extends beyond manufacturing:

• Uncompromising Material Quality: We start with the highest purity, low-sulfur flexible graphite foil, ensuring superior thermal and chemical performance.
• Precision Manufacturing: Our state-of-the-art die-forming presses and tooling guarantee rings with exacting tolerances, uniform density, and flawless consistency, lot after lot.
• Rigorous Quality Control: Every batch undergoes stringent testing for density, tensile strength, compressibility, and recovery to meet our exacting standards and relevant ASTM specifications.
• Deep Technical Expertise: With decades of experience, our engineering team provides unparalleled application support, helping you select, design, and troubleshoot for optimal sealing performance.
• Comprehensive Solutions: We offer more than just rings—we provide complete sealing system solutions, including technical drawings, installation guidance, and compatibility analysis.
• Global Reliability: Trusted by OEMs and operators worldwide in the most critical industries, Kaxite Sealing is synonymous with durability, safety, and cost-effectiveness over the total lifecycle of your equipment.
