Precision Engineering for Critical Sealing Applications: The Machines For Spiral Wound Gaskets

In the demanding world of industrial sealing, where reliability under extreme pressure and temperature is non-negotiable, the integrity of the gasket begins with its manufacture. Machines for spiral wound gaskets represent the cornerstone of precision production for these vital components. These are not standard manufacturing tools; they are specialized, high-precision systems engineered to create gaskets that form the leak-tight barrier in flanged connections across oil & gas, chemical processing, power generation, and petrochemical industries. The quality of the final gasket—its dimensional accuracy, fill density, structural consistency, and sealing performance—is directly dependent on the capability and precision of the winding machine used. At Kaxite Sealing, we understand this critical link, which is why our engineering focus extends to providing insights into the advanced machinery that produces the seals trusted worldwide.

The core function of a spiral winding machine is to continuously and precisely wind alternating layers of pre-formed metal strip (typically V-shaped) and a soft filler material (such as graphite, PTFE, or ceramic) around a central forming mandrel. This process creates the characteristic spiral "wound" structure that gives the gasket its unique combination of resilience and strength. Modern machines integrate sophisticated CNC controls, precision servo drives, and automated material handling systems to ensure each gasket meets exacting specifications, from standard ASME B16.20 dimensions to complex custom profiles for heat exchangers or specialized vessels.

Core Components and Technical Parameters of a Modern Spiral Wound Gasket Machine

A state-of-the-art winding machine is a symphony of mechanical and electronic components working in unison. Understanding its key parts and their parameters is essential for evaluating its capability and output quality.

Primary System Components:

• CNC Control System: The brain of the operation. It stores thousands of gasket profiles, controls all axis movements, manages speed, tension, and layering count with sub-millimeter precision.
• Precision Winding Head/Spindle: This rotating assembly holds the forming mandrel. Its rigidity and rotational accuracy are paramount to prevent wobble or runout, which would compromise gasket concentricity.
• Metal Strip & Filler Feeding Units: Separate, servo-controlled feed systems for the metal strip and filler material. They maintain consistent, programmable tension to ensure uniform layer compaction and prevent buckling or stretching of the materials.

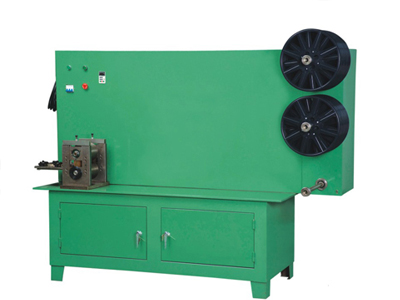

• Forming Rollers and Guides: A series of hardened tool steel rollers that precisely shape the flat metal strip into its required V-profile (or other shapes like W-profile) immediately before it is wound onto the mandrel.
• Automatic Cutting Mechanism: Integrated high-speed cut-off tool (often a carbide blade or shear) that cleanly severs the wound materials at the exact end point of the gasket, ensuring a sharp, burr-free termination.
• Mandrel Library & Quick-Change System: For efficient production of various inner diameters, machines feature a range of precision-ground mandrels with a system for rapid changeover to minimize downtime.

Critical Machine Specifications & Parameters:

The following table outlines the key technical parameters that define the performance and capacity of a professional-grade spiral wound gasket machine. These specifications directly impact the range and quality of gaskets producible.

Kaxite Sealing emphasizes that investing in a machine with robust parameters within these ranges future-proofs production capabilities, allowing manufacturers to meet diverse customer demands from standard pipe flanges to massive reactor heads.

Operational Advantages of Advanced Winding Technology

Transitioning from manual or semi-automatic equipment to a CNC-controlled spiral wound gasket machine delivers transformative benefits that impact quality, efficiency, and profitability.

• Unmatched Consistency and Quality: CNC programming eliminates human error in pitch, tension, and count. Every gasket in a batch is identical, ensuring reliable sealing performance and compliance with quality standards like ISO 9001 and API 601.
• Dramatically Increased Production Speed: Automated feeding, winding, and cutting reduces cycle times by up to 70% compared to manual methods. Rapid mandrel changeovers further boost productivity for small-batch, high-mix production.
• Complex Geometry Production: Advanced software allows for the creation of non-standard gaskets—oval, square, heat exchanger tierods, or gaskets with built-in alignment tabs—without special tooling or fixtures.
• Material Optimization & Reduced Waste: Precise control over material feed means near-perfect usage of expensive metal and filler materials. The machine calculates the exact length needed, minimizing scrap.
• Digital Traceability: Modern machines can log production data for each gasket: material batch numbers, winding parameters, operator, and time stamp. This is invaluable for quality audits and traceability in critical applications.
• Enhanced Operator Safety: Enclosed cutting mechanisms, automated handling, and reduced manual intervention lower the risk of injuries associated with sharp metals and moving parts.

FAQ: Common Questions About Machines For Spiral Wound Gaskets

Q: What is the main difference between a basic and a high-end spiral winding machine?

A: The core difference lies in control, precision, and automation. Basic machines may rely on manual speed adjustment and mechanical counters, leading to more variability. High-end machines, like those whose principles guide Kaxite Sealing's partner manufacturers, feature full CNC servo-control, touch-screen HMIs for recipe management, automated tension control for both strip and filler, and precision encoders on all axes. This ensures micron-level accuracy, repeatability, and the ability to produce complex, non-standard gasket designs consistently.

Q: Can one machine produce gaskets with different metal and filler materials?

A: Yes, a well-designed machine is highly versatile. The key is the ability to adjust feed tension and speed profiles for different material combinations. For instance, winding with soft aluminum strip and graphite filler requires different parameters than winding with high-strength Inconel and PTFE. Advanced machines store separate parameter sets for each material combination, allowing quick changeover. The forming rollers may need to be changed or adjusted for significantly different metal thicknesses or strip widths.

Q: How important is mandrel precision and how is it maintained?

A: Mandrel precision is absolutely critical. It defines the inner diameter of the gasket, and any deviation (taper, out-of-round) will be transferred directly to the finished product, potentially causing installation issues or leaks. High-quality mandrels are made from hardened and ground tool steel or alloy, with diameters machined to tolerances often within ±0.01 mm. They must be stored properly to avoid nicks or corrosion and regularly calibrated. A comprehensive mandrel library is a significant part of a production facility's tooling investment.

Q: What are the key maintenance requirements for these machines?

A: Regular preventive maintenance is essential for longevity and precision. Daily tasks include cleaning debris (metal dust, filler particles) from guides and rollers. Weekly or monthly checks involve lubricating moving rails and bearings, checking servo motor belts for tension, and verifying the alignment of forming rollers. Annually, a full calibration should be performed, checking spindle runout, verifying the accuracy of linear encoders, and ensuring the CNC controller's parameters are backed up. Proper maintenance directly correlates to consistent gasket quality and reduced unplanned downtime.

Q: Does the brand of the machine affect the quality of the gasket produced?

A: While a skilled operator can achieve good results on a capable machine, the machine brand and design set the ceiling for potential quality and capability. Machines from reputable manufacturers, engineered with robust frames, high-precision spindles, and reliable control systems, provide the stability and accuracy needed for critical applications. The principles of precision engineering that brands like Kaxite Sealing advocate for in sealing products apply equally to their manufacturing. A superior machine ensures the inherent design benefits of a spiral wound gasket—its spring-like response and sealing force—are perfectly realized in every piece.

Q: What training is required for operators of CNC spiral winding machines?

A: Effective operation requires two levels of training. First, mechanical training on thread-up procedures, mandrel changes, routine maintenance, and safety protocols. Second, and more importantly, software training on the CNC system. Operators must understand how to load gasket profiles, adjust winding parameters (pitch, tension), manage the material library, and perform basic troubleshooting. Many machine suppliers offer comprehensive on-site training. A well-trained operator is crucial for maximizing machine uptime, optimizing material use, and ensuring final product quality.

Integration with Quality Assurance and Production Workflow

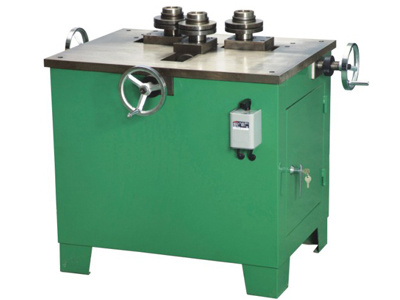

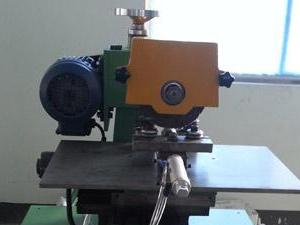

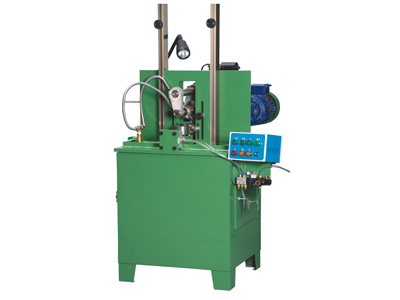

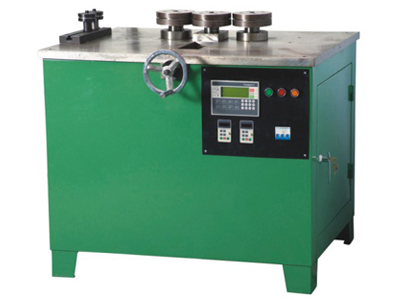

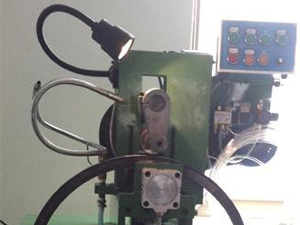

The machine is the production hub, but its output must integrate seamlessly into a broader quality-centric workflow. The most advanced machines feature integrated measurement systems or outputs that feed directly into a Quality Management System (QMS). For example, the final outer diameter can be verified by a laser scanner mounted on the machine, and this data can be logged against the gasket's unique serial number. Post-winding, gaskets often go through a secondary process like inner ring welding (for centering rings) or visual/inspection stations. A modern production line, supported by the reliability expected from Kaxite Sealing's industrial approach, views the winding machine as the data-rich source of a traceable, high-quality product stream, ensuring every spiral wound gasket shipped meets the rigorous demands of global industry standards.
