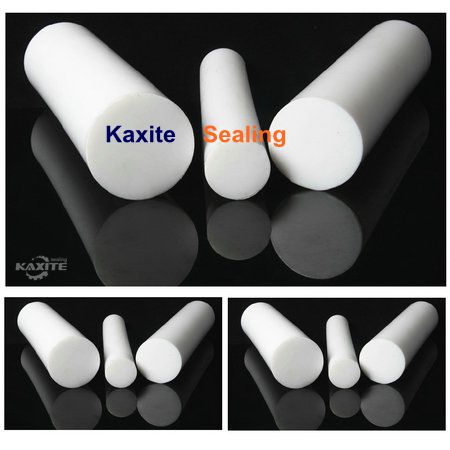

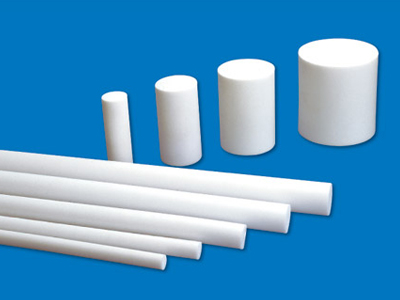

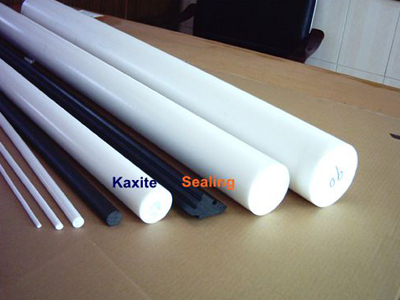

PTFE Rods, machined from high-purity Polytetrafluoroethylene, represent the pinnacle of performance in demanding sealing, insulating, and low-friction applications. At Kaxite Sealing, we engineer these rods to exceed industry standards, providing unparalleled chemical resistance, thermal stability, and dielectric properties. This guide delves into the specifications, benefits, and technical nuances of our PTFE rod products, equipping engineers, procurement specialists, and fabricators with the detailed information needed for informed material selection. ### Core Advantages and Material Properties PTFE, often known by the brand name Teflon®, is a synthetic fluoropolymer celebrated for its unique combination of characteristics. These inherent properties translate directly into the performance of PTFE rods: * **Exceptional Chemical Resistance:** Inert to nearly all industrial chemicals and solvents, making it ideal for aggressive environments. * **Wide Temperature Range:** Performs consistently from -200°C (-328°F) to +260°C (+500°F). * **Ultra-Low Coefficient of Friction:** Provides self-lubricating properties, reducing wear and energy consumption. * **Excellent Dielectric Strength:** A superb electrical insulator across a wide frequency range. * **High Purity & FDA Compliance:** Certain grades are suitable for food, beverage, and pharmaceutical contact applications. * **Non-Stick Surface:** Prevents adhesion of materials, simplifying cleaning and maintenance. ### Detailed Product Specifications for Kaxite Sealing PTFE Rods Our rods are manufactured in various grades to meet specific mechanical, thermal, and purity requirements. Below is a comprehensive breakdown of our standard offerings. #### Standard Grade PTFE Rod This is our versatile, general-purpose grade, suitable for most mechanical and sealing applications. **Typical Properties Table:** | Property | Test Method | Value / Rating | | :--- | :--- | :--- | | **Density** | ASTM D792 | 2.14 - 2.20 g/cm³ | | **Tensile Strength** | ASTM D638 | 25 - 35 MPa (3600 - 5000 psi) | | **Elongation at Break** | ASTM D638 | 300 - 500 % | | **Compressive Strength** | ASTM D695 | 12 MPa (1700 psi) | | **Coefficient of Friction (Dynamic)** | ASTM D1894 | 0.05 - 0.10 | | **Continuous Service Temperature** | — | -200°C to +260°C (-328°F to +500°F) | | **Dielectric Strength** | ASTM D149 | 19 kV/mm (480 V/mil) | | **Chemical Resistance** | — | Excellent to virtually all chemicals | **Available Sizes (Standard Stock):** * **Diameters:** 5mm (0.20") to 300mm (11.8") and larger upon request. * **Lengths:** 500mm (19.7"), 1000mm (39.4"), and custom lengths. * **Tolerances:** Standard dimensional tolerance adheres to DIN 7168 / ISO 2768 medium (m). Precision-machined tolerances available. #### Reinforced PTFE Rod (Glass, Carbon, Bronze Filled) For applications requiring enhanced mechanical strength, reduced creep (cold flow), and improved wear resistance, Kaxite Sealing offers reinforced PTFE compounds. **Comparison of Reinforced Grades:** | Filler Type | Key Advantages | Typical Applications | | :--- | :--- | :--- | | **Glass Fiber** | Improved compressive strength, reduced deformation under load, good wear resistance. | Heavy-duty bushings, thrust washers, gaskets for flanges. | | **Carbon Fiber** | Superior wear resistance, high thermal conductivity, excellent creep resistance. | Piston rings, compressor rings, dynamic seals in dry or lubricated environments. | | **Bronze Powder** | Excellent thermal conductivity, high load-bearing capacity, reduced wear. | Bearings operating under high PV (Pressure-Velocity) values, sliding plates. | **Typical Property Enhancement (vs. Virgin PTFE):** * **Compressive Strength:** Increased by 200-400% * **Wear Resistance:** Improved by a factor of 500-1000x * **Thermal Conductivity:** Up to 5x higher (Bronze-filled) * **Limiting PV Value:** Significantly increased for dynamic applications #### High-Purity & FDA-Compliant PTFE Rod Manufactured under controlled conditions for industries where purity is critical. * **Compliance:** Meets FDA CFR 21.177.1550 and USP Class VI specifications. * **Low Extractables:** Ideal for semiconductor, pharmaceutical, and food processing equipment. * **Color:** Typically natural white to ensure no dye contaminants. ### Selection Guide: Choosing the Right PTFE Rod Consider the following factors when specifying a rod for machining components: 1. **Application Stress:** Is the part under tensile, compressive, or flexural load? Reinforced grades handle higher sustained loads. 2. **Environment:** What chemicals are present? What is the operating temperature range? Virgin PTFE offers the broadest chemical resistance. 3. **Dynamic vs. Static:** Is the part moving (bearing, seal) or static (gasket, spacer)? Wear resistance and PV rating are critical for dynamic parts. 4. **Dimensional Stability:** Is creep (cold flow) a concern under long-term load? Filled grades resist deformation. 5. **Regulatory Requirements:** Is FDA, USP, or other industry-specific certification needed? ### Fabrication and Machining Notes PTFE is easily machined with standard metalworking tools, though its low thermal conductivity requires specific techniques: * Use sharp, high-speed steel or carbide tools. * Employ high cutting speeds with low feed rates. * Ensure proper clamping to avoid deformation (PTFE is soft). * Coolants are generally not required but can be used to improve finish. * Kaxite Sealing can supply rods pre-cut to blank sizes or offer full CNC machining services to your drawings. ### Frequently Asked Questions (FAQ) About PTFE Rods **What is the main difference between PTFE Rod and other plastic rods like Nylon or Acetal?** PTFE offers vastly superior chemical resistance and a much wider operating temperature range (-200°C to +260°C) compared to Nylon or Acetal (typically -40°C to 120°C). Its coefficient of friction is also the lowest among common engineering plastics, and it is inherently flame-retardant. **Can Kaxite Sealing PTFE rods be used for food processing equipment?** Yes, we supply a specific high-purity, FDA-compliant grade of PTFE rod that is sanctioned for repeated use in contact with food substances under CFR 21.177.1550. It is the preferred material for seals, guides, and wear plates in food and beverage machinery. **How does "creep" or "cold flow" affect PTFE, and how can it be mitigated?** Virgin PTFE is susceptible to dimensional change under continuous mechanical stress, a property known as creep or cold flow. This can lead to seal failure in bolted flanges or loss of preload in bearings. Mitigation strategies include using reinforced PTFE grades (glass, carbon), designing to lower stress levels, or using PTFE as a liner within a restraining metal housing. **What are the key considerations when designing a seal from a PTFE rod?** Critical factors include: the chemical compatibility of the media, system pressure and temperature, the type of motion (static, rotary, reciprocating), surface finish of the mating hardware, and the required seal geometry. For dynamic seals, filled PTFE grades (carbon, bronze) are often specified for their excellent wear resistance and thermal properties. **Is PTFE electrically conductive?** No, virgin PTFE is an excellent electrical insulator with a very high dielectric strength. This makes PTFE rods ideal for insulating spacers, standoffs, and components in electrical and electronic applications. Conductive versions are available by adding fillers like carbon or metal powders, but these are specialty products. **How should PTFE rods be stored before machining?** Store rods in a cool, dry place away from direct sunlight and heat sources. They should be kept clean and laid flat on a supportive surface to prevent bending or deformation over time. No special humidity control is typically required. **Can you provide custom-colored PTFE rods?** While virgin PTFE is naturally white, we can produce rods in standard colors (e.g., black for UV resistance, specific colors for coding) using compatible, thermally stable pigments. This is common for reinforced grades where the filler (e.g., carbon) already imparts a color. **What post-machining treatments are available for PTFE components?** While not always necessary, surface treatments can be applied. These include light polishing to achieve a specific surface finish (Ra value) or a specialized etching process to improve adhesion if the part is to be bonded, though bonding PTFE is inherently challenging. **What are the limits of PTFE regarding pressure and speed in bearing applications?** The performance of a PTFE bearing is defined by its limiting Pressure-Velocity (PV) value. For continuous dry running, virgin PTFE has a low PV limit (~1000 psi-fpm). Using reinforced PTFE grades, incorporating lubrication, or improving heat dissipation can dramatically increase the practical PV limit, allowing use in more demanding applications. Our engineering team can assist with PV calculations. **Does Kaxite Sealing offer traceability and material certification?** Yes. For critical applications, we provide full material traceability and can supply certified test reports (e.g., Mill Test Reports) detailing the physical properties and confirming compliance with relevant standards (ASTM, DIN, FDA) for the specific batch of material used to produce your rods.
