What Are Double Jacket Gaskets?

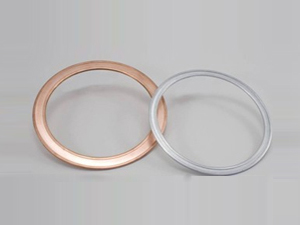

In demanding industrial sealing applications, where extreme pressures, temperatures, and aggressive media are the norm, a standard gasket often falls short. This is where the engineered solution of the Double Jacket Gasket excels. Manufactured by Kaxite Sealing, these gaskets represent a pinnacle of sealing technology, designed to provide unmatched performance in the most challenging environments. A Double Jacket Gasket is constructed by encasing a soft, conformable filler material (such as flexible graphite, PTFE, or ceramic fiber) within a sturdy, corrugated metal jacket—typically crafted from stainless steel, carbon steel, or exotic alloys. This intelligent dual-layer design combines the resilience and sealing force of the metal jacket with the excellent sealing properties and compressibility of the filler. The result is a gasket that maintains a leak-tight seal under high bolt loads, thermal cycling, and system vibrations, making it an indispensable component in critical piping, vessel, and heat exchanger applications across industries like oil & gas, chemical processing, power generation, and refining.

Key Features & Advantages of Kaxite Sealing Double Jacket Gaskets

Kaxite Sealing's Double Jacket Gaskets are not just products; they are reliability solutions. Our design and manufacturing focus delivers distinct advantages:

• Superior Sealing Integrity: The metal jacket provides a robust, contained structure that prevents filler blow-out, even under severe pressure fluctuations and thermal cycling, ensuring a long-lasting, leak-free seal.
• Exceptional Pressure and Temperature Resistance: Engineered to withstand extreme conditions far beyond the capabilities of many non-metallic or semi-metallic gaskets. They perform reliably in services from high vacuum to very high pressure.
• Excellent Crush and Creep Relaxation Resistance: The corrugated metal jacket acts as a spring, maintaining a high residual bolt load on the filler material. This compensates for any potential relaxation, preventing leaks over the long term.
• Wide Chemical Compatibility: By selecting the appropriate metal jacket material (e.g., 316SS, Inconel, Titanium) and filler (Flexible Graphite, PTFE, Ceramic), Kaxite Sealing can tailor gaskets to resist a vast array of corrosive fluids and gases.
• Durability and Reusability: Their robust construction often allows for careful reuse during maintenance, providing better lifecycle value compared to softer gasket types.
• Custom Engineering: Kaxite Sealing provides fully custom solutions—any size, any material combination, and non-standard geometries to fit unique flange designs.

Technical Specifications & Product Parameters

Selecting the correct Double Jacket Gasket requires careful consideration of operational parameters. Below are the standard specifications for Kaxite Sealing's core product line. Custom specifications are available upon engineering review.

Standard Material Combinations

Standard Size & Dimensional Parameters

Performance Characteristics Table

Frequently Asked Questions (FAQ) About Double Jacket Gaskets

Q: When should I choose a Double Jacket Gasket over a Spiral Wound Gasket?

A: The choice often depends on application specifics. Double Jacket Gaskets are generally preferred for higher-pressure, high-temperature services and in applications with significant thermal cycling. Their solid metal jacket construction offers superior resistance to creep relaxation and provides a more robust physical barrier against filler extrusion compared to the spiral winding. They are often specified for heat exchangers, reactor flanges, and critical pipeline valves. Spiral wound gaskets offer excellent flexibility and are great for flanges with less-than-perfect conditions, but for the most severe, consistent loads, the Double Jacket design from Kaxite Sealing is frequently the engineer's choice.

Q: Can Kaxite Sealing Double Jacket Gaskets be used in heat exchanger applications?

A: Absolutely. In fact, they are one of the most recommended gasket types for shell-and-tube heat exchangers, condensers, and other similar equipment. Their ability to handle the differential expansion between the shell and channel, combined with high pressure/temperature capability and good thermal conductivity (especially with graphite filler), makes them ideal. Kaxite Sealing manufactures Double Jacket Gaskets to exact TEMA standards and custom drawings for all types of heat exchangers.

Q: How do I determine the right material combination for my service?

A: Material selection is critical. You must consider the chemical compatibility of BOTH the metal jacket and the filler with the process media, as well as the continuous and peak temperature. For example, flexible graphite filler is excellent for high temperatures but is not suitable for strong oxidizing agents. PTFE filler has superb chemical resistance but a lower temperature limit. The team at Kaxite Sealing provides expert technical support for this very purpose. Providing details of your fluid, concentration, temperature, pressure, and flange type allows our engineers to recommend the optimal, safest, and most cost-effective material combination.

Q: What are the recommended bolting and installation procedures for these gaskets?

A: Proper installation is key to performance. Always start with clean, undamaged flange faces. The gasket should be centered on the flange. Use a calibrated torque wrench and follow a star-pattern (cross-bolting) tightening sequence in multiple passes to achieve an even, recommended seating stress. The final target bolt load should be based on the gasket's "y" (seating stress) and "m" (maintenance factor) values, which Kaxite Sealing provides with the gasket. Never reuse a gasket that has been heavily compressed or shows signs of damage. Always consult the specific installation guide provided with your Kaxite Sealing gasket.

Q: Are these gaskets suitable for offshore and subsea applications?

A: Yes, with the correct material specification. Kaxite Sealing Double Jacket Gaskets are extensively used in offshore oil and gas production. For such critical applications, materials with high resistance to chloride-induced stress corrosion cracking (like Inconel 625) are often specified. The gaskets can be designed and manufactured to meet the stringent requirements of NORSOK, API, and other offshore standards, providing reliable sealing integrity in these unforgiving environments.

Q: Does Kaxite Sealing provide traceability and certification for these gaskets?

A: Yes, traceability and quality assurance are fundamental at Kaxite Sealing. For critical service gaskets, we provide full material traceability through Mill Test Certificates (MTCs) or Certificates of Conformance (CoC) for both the metal jacket and filler material. Our quality management system ensures that every gasket is manufactured to specification. Additional certifications like NACE MR0175 for sour service or specific customer-required documentation are available upon request.

Applications of Kaxite Sealing Double Jacket Gaskets

The robustness and versatility of Kaxite Sealing Double Jacket Gaskets make them suitable for a vast array of critical sealing points. Their primary application sectors include:

• Oil & Gas Refining: High-pressure reactor flanges, crude and vacuum distillation units, hydrotreater and hydrocracker flanges, and high-temperature pipeline valves.
• Chemical & Petrochemical Processing: Agitator and manway seals on reactors, column flanges, heat exchanger channels, and connections handling corrosive or hazardous chemicals.
• Power Generation: Main steam lines, turbine bypass systems, feedwater heaters, and other high-pressure/temperature utility systems in fossil fuel and nuclear plants.
• Heat Exchangers: The standard for sealing shell-to-channel, channel-to-cover, and bonnet flanges in shell-and-tube heat exchangers per TEMA standards.
• Pulp & Paper Industry: Digester and bleach plant equipment requiring resistance to high temperatures and corrosive chemicals.
• High-Pressure Vessel Connections: Any application involving autoclaves, reactors, or separators operating under extreme internal pressure.
