In the demanding world of fluid and gas handling, selecting the right tubing material is critical for ensuring system integrity, safety, and longevity. Among the various options available, PTFE Tube, or Polytetrafluoroethylene tubing, stands out as a premier choice for applications requiring exceptional chemical resistance, thermal stability, and non-stick properties. At Kaxite Sealing, we specialize in manufacturing precision-engineered PTFE tubing that meets the rigorous standards of industries ranging from pharmaceuticals and chemical processing to food and beverage and semiconductor manufacturing. This comprehensive guide delves into the specifics of PTFE tubing, its key parameters, and why Kaxite Sealing is your trusted partner for high-quality sealing solutions.

What is PTFE Tubing?

PTFE is a synthetic fluoropolymer renowned for its inertness and robust performance under extreme conditions. A PTFE tube inherits these exceptional properties, making it an ideal conduit for aggressive chemicals, high-purity media, and high-temperature fluids. Unlike conventional tubing materials, it does not degrade, contaminate the media, or promote bacterial growth, ensuring consistent and reliable operation.

Key Advantages of Kaxite Sealing PTFE Tubes

Unmatched Chemical Resistance: Inert to nearly all industrial chemicals and solvents, making it perfect for corrosive fluid transfer.
Exceptional Temperature Range: Performs consistently from -200°C to +260°C (-328°F to +500°F).
Superb Dielectric Properties: Excellent electrical insulator, suitable for wiring and cable insulation.
Ultra-Low Friction & Non-Stick: Prevents material buildup, ensuring smooth flow and easy cleaning.
High Purity & Non-Toxic: Compliant with FDA and USP Class VI standards, safe for food, medical, and pharmaceutical use.
Zero Moisture Absorption: Dimensions and properties remain stable in humid environments.
Excellent Weathering and UV Resistance: Maintains performance outdoors and under sunlight.

Detailed Product Parameters of Kaxite Sealing PTFE Tubes

Our PTFE tubing is manufactured with precision to ensure tight tolerances and consistent quality. Below are the standard specifications and available options.

Standard Physical & Mechanical Properties

Property	Test Method	Typical Value	Unit
Density	ASTM D792	2.15 - 2.20	g/cm³
Tensile Strength	ASTM D638	25 - 35	MPa
Elongation at Break	ASTM D638	300 - 500	%
Melting Point	-	327	°C
Continuous Service Temperature	-	-200 to +260	°C
Coefficient of Friction	ASTM D1894	0.05 - 0.10	-
Dielectric Strength	ASTM D149	>60	kV/mm

Standard Dimensional Specifications

Kaxite Sealing offers a wide range of sizes. Custom sizes are available upon request.

Nominal Bore (ID)	Outer Diameter (OD)	Wall Thickness	Standard Length	Tolerance
1 mm	2 mm	0.5 mm	1 m, 10 m, 50 m coils	±0.1 mm
2 mm	4 mm	1.0 mm	1 m, 10 m, 50 m coils	±0.1 mm
4 mm	6 mm	1.0 mm	1 m, 10 m, 50 m coils	±0.15 mm
6 mm	10 mm	2.0 mm	1 m, 10 m, 50 m coils	±0.2 mm
10 mm	14 mm	2.0 mm	1 m, 10 m, 50 m coils	±0.2 mm
12 mm	16 mm	2.0 mm	1 m, 10 m, 50 m coils	±0.2 mm
1/4"	3/8"	1/16"	1 m, 10 ft, 50 ft coils	±0.005"
3/8"	1/2"	1/16"	1 m, 10 ft, 50 ft coils	±0.005"
1/2"	3/4"	1/8"	1 m, 10 ft, 50 ft coils	±0.005"

Available Colors and Certifications

Standard Colors: Natural (White), Black. Custom colors are available for specific identification needs.
Common Certifications & Compliances: FDA CFR 21, USP Class VI, RoHS, REACH, ISO 10993 (for biocompatible grades).

Applications of PTFE Tubing

The unique property profile of PTFE tubing makes it indispensable across numerous sectors:

Industry	Typical Applications
Chemical & Pharmaceutical	Transfer lines for acids, alkalis, solvents; bioreactor feed lines; high-purity water systems.
Food & Beverage	Dairy product lines, beverage dispensing, flavoring and coloring transfer, sanitary fittings.
Semiconductor & Electronics	Ultra-pure chemical delivery, wafer cleaning lines, gas lines, wire insulation.
Automotive & Aerospace	Fuel lines, hydraulic lines, air sampling tubes, sensor protection sheaths.
Medical & Laboratory	Peristaltic pump tubing, catheters, fluid transfer in analyzers, breathable membranes.
Industrial	Compressed air lines, steam lines, pneumatic controls, corrosive fluid handling.

PTFE Tube: Frequently Asked Questions (FAQ)

What is the maximum pressure a PTFE tube can withstand?

The pressure rating of a PTFE tube depends on its inner diameter, wall thickness, temperature, and the fittings used. As a general rule, smaller diameter tubes with thicker walls can handle higher pressures. At room temperature (20°C), our standard tubes can typically handle working pressures up to 150 PSI (10 bar). However, pressure ratings decrease significantly at elevated temperatures. It is crucial to consult Kaxite Sealing's technical datasheets for specific pressure-temperature curves for your selected tube size and grade. For high-pressure applications, we offer reinforced PTFE tubing options.

Can PTFE tubing be bent or shaped?

Yes, PTFE tubing is relatively flexible and can be bent to a certain extent. The minimum bend radius is typically 4 to 5 times the outer diameter of the tube. For example, a tube with a 10 mm OD should not be bent tighter than a 40-50 mm radius to avoid kinking or compromising the inner bore. For complex or permanent shapes, heat-forming can be applied. It is advisable to use bend supports or spring guards for tight bends in dynamic applications to prevent fatigue.

How do I connect or fit PTFE tubing?

PTFE tubing requires specific connection methods due to its slippery, non-stick surface and limited elasticity. Common fitting techniques include using compression fittings with ferrules (e.g., Swagelok-style), push-to-connect fittings, barbed fittings with hose clamps (for low pressure), and flared fittings. For a permanent, leak-proof seal, heat welding or butt welding is often used. Kaxite Sealing can provide guidance on the most suitable fitting system for your application and pressure requirements.

Is PTFE tubing safe for drinking water or food contact?

Absolutely. Virgin, uncontaminated PTFE is inherently non-toxic and inert. Kaxite Sealing's food-grade and medical-grade PTFE tubes are manufactured from 100% virgin PTFE resin and comply with stringent regulations such as FDA CFR 21 and USP Class VI. These certifications ensure the material is safe for direct or indirect contact with food, beverages, and pharmaceutical products, without leaching harmful substances or imparting taste or odor.

What is the difference between PTFE, FEP, and PFA tubing?

PTFE, FEP (Fluorinated Ethylene Propylene), and PFA (Perfluoroalkoxy) are all fluoropolymers with excellent chemical resistance. Key differences lie in their temperature resistance, flexibility, and transparency. PTFE has the highest continuous use temperature (260°C) but is opaque. FEP is transparent and melt-processable (easier to weld) but has a lower temperature limit (205°C). PFA offers clarity similar to FEP and temperature resistance close to PTFE (260°C), but it is generally more expensive. Kaxite Sealing offers all three types and can help you select the optimal material based on your specific needs for temperature, clarity, and budget.

How do I clean PTFE tubing?

Cleaning PTFE tubing is straightforward due to its non-stick properties. For most residues, flushing with an appropriate solvent (compatible with PTFE) followed by deionized water is effective. For more thorough cleaning or sterilization, autoclaving at temperatures up to 130°C is possible. PTFE is also resistant to most chemical cleaning agents. Always ensure the cleaning agent is compatible with PTFE and that the tube is thoroughly rinsed with pure water before returning to service, especially in high-purity applications.

Does Kaxite Sealing offer custom PTFE tubing solutions?

Yes, customization is a core strength at Kaxite Sealing. We understand that standard sizes may not fit every application. We offer custom tubing in non-standard inner/outer diameters, specific wall thicknesses, special colors for coding, custom lengths (bulk coils or cut pieces), and printing/marking. We can also produce tubing from specialized PTFE compounds, including conductive, filled, or high-purity grades. Contact our engineering team with your specifications for a tailored solution.

Why Choose Kaxite Sealing for Your PTFE Tubing Needs?

With decades of expertise in advanced polymer sealing solutions, Kaxite Sealing has established itself as a leader in high-performance PTFE tubing. Our commitment to quality begins with the selection of premium raw materials and extends through our controlled manufacturing processes, rigorous quality control, and dedicated technical support. We don't just sell tubing; we provide reliable fluid handling solutions backed by deep material science knowledge. Whether you need a standard tube for a maintenance replacement or a fully customized solution for a cutting-edge application, Kaxite Sealing has the capability and expertise to deliver products that ensure performance, safety, and durability.

View as

Molded PTFE Tube

Kaxite Sealing's Molded PTFE Tube delivers exceptional chemical resistance and durability for demanding industrial applications. Crafted from premium molded PTFE, this tube offers superior flexibility and long-lasting performance, ideal for engineers and manufacturers in harsh environments. Experience peace of mind with a reliable solution that prevents leaks and reduces downtime—stand out from competitors with our precision-engineered design. Trust Kaxite Sealing for quality that enhances efficiency and safety.

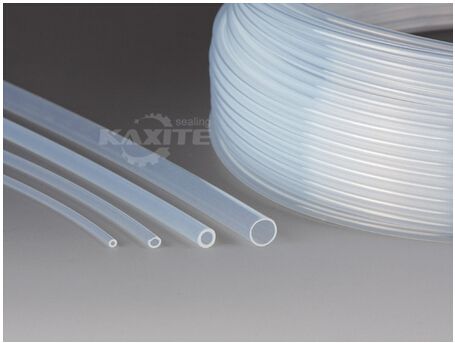

Flexible PTFE Tube

Kaxite Sealing's Flexible PTFE Tube: a durable, chemical-resistant solution ideal for engineers and industries handling harsh fluids. Its unique flexibility ensures reliable sealing under varying temperatures, solving leakage issues and boosting operational confidence. Experience unmatched performance with Kaxite's precision engineering—perfect for demanding applications.
