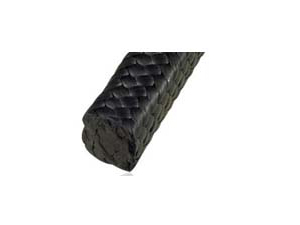

What is Graphite PTFE Packing?

In demanding industrial sealing applications, finding a solution that combines low friction, chemical resistance, and reliable performance under varying pressures and temperatures is a constant challenge. Graphite PTFE Packing, a high-performance composite sealing material, is engineered specifically to meet these rigorous demands. This advanced packing style from Kaxite Sealing represents a significant evolution from traditional braided packings, integrating the unique properties of expanded PTFE (Polytetrafluoroethylene) and flexible graphite to create a superior seal for rotating and reciprocating shafts.

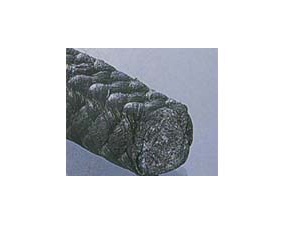

At its core, Graphite PTFE Packing utilizes a base of premium expanded PTFE yarn, which is inherently chemically inert and offers an exceptionally low coefficient of friction. This PTFE core is then impregnated or combined with high-purity, corrosion-resistant flexible graphite. The graphite component enhances thermal conductivity, allowing heat to dissipate quickly from the shaft interface, and improves the packing's ability to withstand extreme temperatures. This synergistic combination results in a durable, self-lubricating packing that maintains its integrity in environments where other materials would fail, ensuring extended service life and reduced maintenance downtime for critical equipment like pumps, mixers, agitators, and valves.

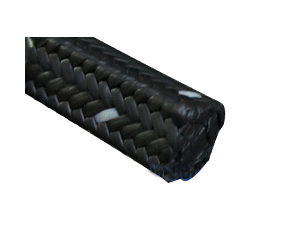

Key Features and Benefits of Kaxite Sealing Graphite PTFE Packing

Kaxite Sealing's Graphite PTFE Packing is designed to deliver unparalleled performance. Here are its primary advantages:

• Exceptional Chemical Resistance: Immune to attack from a vast range of aggressive chemicals, acids, alkalis, and solvents, making it suitable for the harshest process environments.
• Wide Temperature Range: Performs reliably from cryogenic temperatures as low as -200°C (-328°F) up to +280°C (+536°F) in oxidizing atmospheres, and even higher in non-oxidizing settings.
• Superior Thermal Conductivity: The graphite filler efficiently transfers heat away from the shaft, preventing heat buildup, reducing shaft wear, and protecting sensitive equipment components.
• Low Friction & Self-Lubricating: The inherent slipperiness of PTFE and graphite minimizes shaft friction, leading to lower power consumption and eliminating the need for external flush or lubrication in most applications.
• Excellent Creep Resistance & Dimensional Stability: Resists cold flow under high bolt load, maintaining a consistent seal over time without excessive gland adjustment.
• Non-Contaminating: Chemically inert and FDA-compliant grades available, making it ideal for food, beverage, pharmaceutical, and ultra-pure water applications.
• Easy Installation & Adjustment: The flexible, braided construction allows for easy handling, cutting, and installation into stuffing boxes.

Technical Specifications & Product Parameters

Kaxite Sealing manufactures its Graphite PTFE Packing to precise standards. The following table outlines the standard material composition and construction, while subsequent details cover physical and performance data.

Physical & Mechanical Properties

• Specific Gravity: 1.6 - 2.0 g/cm³
• pH Range: 0 - 14 (Full range)
• Tensile Strength: > 15 MPa (dependent on braid style)
• Thermal Conductivity: Significantly higher than standard PTFE packings due to graphite content.
• Coefficient of Friction: Extremely low (typically 0.05 - 0.1).

Standard Available Sizes

Kaxite Sealing Graphite PTFE Packing is supplied in continuous coils or pre-formed rings. Standard square cross-sections include:

• 3mm x 3mm (1/8" x 1/8")
• 5mm x 5mm (3/16" x 3/16")
• 6mm x 6mm (1/4" x 1/4")
• 8mm x 8mm (5/16" x 5/16")
• 10mm x 10mm (3/8" x 3/8")
• 13mm x 13mm (1/2" x 1/2")
• Custom sizes are available upon request.

Typical Applications for Graphite PTFE Packing

This versatile sealing solution is specified across numerous industries due to its robust performance profile:

• Chemical & Petrochemical Processing: Sealing pumps and valves handling acids, caustics, solvents, and hydrocarbons.
• Pharmaceutical & Biotechnology: Sealing mixers, reactors, and transfer pumps in sterile or CIP/SIP processes.
• Food & Beverage: Sealing agitators and pumps for ingredients, sauces, and edible oils; meets FDA requirements.
• Power Generation: Sealing boiler feed pumps, cooling water pumps, and other auxiliary equipment.
• Pulp & Paper: Sealing equipment in bleaching, chemical recovery, and stock preparation stages.
• Water & Wastewater Treatment: Sealing mixers and pumps in abrasive and corrosive slurry services.
• General Industrial: A reliable seal for general service pumps, mixers, and agitators across all manufacturing sectors.

Installation Guidelines for Optimal Performance

Correct installation is critical to achieving the long service life and leak-free operation promised by Kaxite Sealing Graphite PTFE Packing. Follow these key steps:

1. Preparation: Clean the stuffing box and shaft thoroughly. Remove all old packing residues. Inspect the shaft/sleeve for scoring or wear; repair or replace if necessary.
2. Measurement & Cutting: Wrap the packing around the shaft (or a mandrel of identical diameter) to measure. Cut each ring at a precise 45-degree angle (scarf cut). Ensure cuts are clean and square.
3. Staggering Joints: Install each ring individually. Place the first ring into the box, using a split bushing or proper tool to seat it firmly at the bottom. Stagger the joints of subsequent rings by approximately 90 degrees.
4. Gland Adjustment: After all rings are installed, finger-tighten the gland nuts. Start the equipment and allow the packing to run-in. Gradually tighten the gland in small increments (typically 1/6 to 1/4 of a turn) over several hours until a slight leakage for lubrication is achieved (usually 1-2 drops per minute). Avoid over-tightening, which causes excessive heat and wear.
5. Run-in Period: Monitor temperature and leakage closely during the initial 24-48 hours of operation, making minor adjustments as needed.

Frequently Asked Questions (FAQ) About Graphite PTFE Packing

Q: What is the main advantage of Graphite PTFE Packing over standard PTFE packing?

A: The primary advantage is the significant enhancement in thermal conductivity and high-temperature capability provided by the flexible graphite. Standard PTFE packing can retain heat at the shaft interface, potentially leading to shaft scoring and packing degradation. The graphite efficiently draws this heat away, allowing the packing to handle higher temperatures and thermal cycling much more effectively, resulting in longer life for both the packing and the shaft.

Q: Can Kaxite Sealing Graphite PTFE Packing be used in high-speed pump applications?

A: Yes, it is an excellent choice for many high-speed applications due to its low friction and self-lubricating properties. The combination of PTFE and graphite creates a smooth, forgiving surface against the shaft, reducing power consumption and heat generation. For extremely high surface speeds (above 15 m/s), consulting with Kaxite Sealing engineers is recommended to select the optimal braid style and density.

Q: Is this packing suitable for handling strong oxidizers like chlorine or hydrogen peroxide?

A: Caution is advised. While PTFE itself is resistant, the flexible graphite component can be susceptible to oxidation in the presence of strong oxidizing agents at elevated temperatures. For such services, Kaxite Sealing offers specialized high-purity PTFE packings without graphite or alternative materials. Always consult the chemical compatibility guide and our technical team for specific media.

Q: How does the installation process differ from traditional braided packings like aramid or flax?

A: The installation is similar in principle but requires more care regarding gland adjustment. Graphite PTFE Packing has less "give" than traditional fibrous packings and is more sensitive to over-tightening. The key is to tighten the gland gradually in very small increments during the run-in period. Over-tightening will not compress it further like a fibrous packing but will instead generate excessive friction and heat, leading to premature failure.

Q: What is the expected service life of this packing?

A: Service life varies dramatically based on application conditions: shaft speed, temperature, pressure, media, and alignment. Under standard service conditions with proper installation and adjustment, users can typically expect 12 to 24 months of service, which is often several times longer than conventional packings. In severe service, life will be shorter but still superior to most alternatives.

Q: Can I use this packing on old or slightly worn equipment?

A: Kaxite Sealing Graphite PTFE Packing is forgiving and can often compensate for minor shaft imperfections or wear better than harder, less conformable materials. However, for optimal performance and longevity, it is always recommended to repair or replace severely scored or worn shafts (wear depth > 0.1mm). Using a shaft sleeve is an effective solution for damaged shafts.

Q: Are there different grades of Graphite PTFE Packing available from Kaxite Sealing?

A: Yes. Kaxite Sealing provides a range of options. These include standard industrial grade, a high-purity/USP Class VI grade for life sciences, and reinforced styles (e.g., with an Inconel wire insert) for exceptionally high-pressure or abrasive applications. We can tailor the graphite content, braid density, and construction to meet specific operational challenges.
