Understanding Graphite Packing: A High-Performance Sealing Solution
In demanding industrial environments where temperatures soar and chemicals abound, reliable sealing is not a luxury—it’s a necessity for safety, efficiency, and operational continuity. For over two decades, professionals have turned to a specific material for these critical applications: graphite. Graphite packing, a form of mechanical sealing, has evolved into a cornerstone technology for pumps, valves, agitators, and other rotary equipment. Its unique properties bridge the gap where traditional packing materials like PTFE or aramid fibers fall short. At Kaxite Sealing, we have dedicated our expertise to engineering premium graphite-based sealing solutions that meet the rigorous demands of modern industry. This guide delves deep into the specifications, benefits, and applications of our high-grade Graphite Packing, providing the detailed technical data engineers and procurement specialists require.

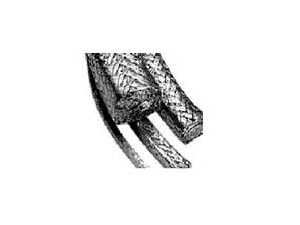

Core Material Properties & Advantages
Kaxite Sealing's Graphite Packing is manufactured from high-purity, expandable graphite flakes, processed and reinforced to create a robust, flexible sealing element. The intrinsic qualities of graphite deliver unparalleled advantages:
- Exceptional Thermal Stability: Operates effectively from cryogenic temperatures up to 3150°F (1730°C) in non-oxidizing atmospheres, and up to 750°F (400°C) in continuous steam or air service. It withstands thermal cycling without hardening or cracking.
- Superior Chemical Inertness: Resists a vast array of aggressive media, including strong acids, alkalis, solvents, hydrocarbons, and hot oils. It is non-reactive and will not contaminate process streams.
- Self-Lubricating Nature: The layered lattice structure of graphite provides inherent lubricity, reducing friction and shaft wear, which lowers power consumption and extends equipment life.
- Conformability and Resilience: The flexible, compressed material conforms perfectly to shaft or stem imperfections, creating a tight seal that adjusts to minor gland adjustments and vibration.
- High Thermal Conductivity: Efficiently dissipates frictional heat away from the shaft interface, preventing heat build-up that can damage both the packing and the equipment.
Kaxite Sealing Graphite Packing: Detailed Product Specifications
Our product line is categorized to suit specific pressure, speed, and media conditions. Below are the standard specifications for our flagship reinforced graphite packing styles.
Standard Grade Specifications (Style GRA-100)
| Parameter | Specification / Value | Test Method / Notes |
|---|---|---|
| Base Material | Reinforced Exfoliated Graphite | High purity, corrosion-resistant inhibitors |
| Temperature Range | -400°F to +750°F (-240°C to +400°C) | In oxidizing atmospheres; Higher in inert gas |
| pH Range | 0 – 14 | Suitable for most acids & alkalis |
| Maximum Shaft Speed | 25 m/s (82 ft/s) | For standard cross-section |
| Maximum Pressure | 2500 psi (172 bar) | Depending on size and number of rings |
| Density | 1.5 - 1.9 g/cm³ | Adjustable based on compression |
| Thermal Conductivity | 50 - 150 W/m·K (in-plane) | Superior heat dissipation |
| Available Cross-Sections | 1/4", 3/8", 1/2", 5/8", 3/4", 1" | Custom sizes available on request |
| Spool Length | 50 ft (15.24 m) standard | Pre-formed rings also available |
High-Performance Grade Specifications (Style GRA-200 with Inconel Wire)
| Parameter | Specification / Value | Test Method / Notes |
|---|---|---|
| Construction | Graphite foil reinforced with Inconel 601 wire | Enhanced tensile strength & abrasion resistance |
| Temperature Range | -400°F to +1200°F (-240°C to +650°C) | Short-term peaks to 1500°F (815°C) |
| pH Range | 0 – 14 | Excludes strong oxidizing acids |
| Maximum Shaft Speed | 30 m/s (98 ft/s) | Ideal for high-speed rotary applications |
| Maximum Pressure | 3500 psi (241 bar) | For aggressive, high-P/T services |
| Density | 1.8 - 2.2 g/cm³ | Higher density for extreme conditions |
| Available Cross-Sections | 3/8", 1/2", 5/8", 3/4" | Standard inventory |
Typical Applications for Kaxite Graphite Packing
The versatility of our packing makes it suitable for a broad spectrum of industries. Below is a concise list of primary applications:
- Chemical & Petrochemical Processing: Sealing pumps and valves handling acids (sulfuric, hydrochloric), alkalis, solvents, and organic chemicals.
- Power Generation: Boiler feed pumps, steam turbine valves, and other high-temperature steam services.
- Oil & Gas Refining: Hot oil pumps, refinery charge pumps, and valves in hydrocarbon service.
- Pharmaceutical & Food: Where purity is critical; our packing is FDA-compliant for incidental contact grades.
- Pulp & Paper: Digester pumps, black liquor service, and other caustic, high-temperature applications.
- General Industrial: Hot water, condensate, heat transfer fluids, and general sealing on rotating equipment.
Frequently Asked Questions (FAQ) About Graphite Packing
Q: How does graphite packing compare to traditional braided packing like PTFE or aramid?
A: Graphite packing offers significantly higher temperature resistance and superior chemical compatibility across a wider pH range compared to PTFE (limited to ~500°F/260°C) or aramids (which degrade in strong acids/alkalis). Its self-lubricating property generally results in less shaft wear and lower friction than many braided styles. While braided packings can be excellent for moderate conditions, graphite is the material of choice for extreme heat and aggressive chemicals.
Q: Is graphite packing suitable for high-speed pump shafts?
A: Yes, particularly our reinforced grades like the GRA-200. The inherent lubricity of graphite minimizes heat generation from friction. For optimal performance on high-speed applications (above 20 m/s), proper installation with adequate gland adjustment and cooling/fluishing is crucial to manage heat dissipation. We recommend consulting Kaxite Sealing's engineering guidelines for specific speed and pressure ratings.
Q: Can graphite packing be used in oxygen or strong oxidizing agent service?
A: Caution is required. Pure graphite can oxidize in the presence of strong oxidizers (e.g., concentrated nitric acid, liquid oxygen) at high temperatures, leading to rapid degradation. For such services, Kaxite Sealing offers specially treated or oxidized grades with inhibitors to enhance resistance. It is critical to provide full service details (media, concentration, temperature) for a correct material selection.
Q: How many rings of graphite packing are typically required in a stuffing box?
A: The number of rings depends on the box depth and shaft diameter. A general rule is to use a number of rings equal to the shaft diameter (in inches) divided by 1/8. For a 2-inch shaft, this would suggest 2 / (1/8) = 16 rings. In practice, 5 to 7 rings are common, but the exact count should follow the equipment manufacturer's specifications or Kaxite Sealing's installation guide to ensure proper sealing and heat distribution.
Q: Does Kaxite Sealing provide pre-formed rings or die-molded sets?
A: Yes. We supply our graphite packing in long spools for custom cutting on-site, as well as precision pre-formed spiral rings and die-molded sets. Pre-formed rings ensure exact sizing, clean butt joints, and faster, more reliable installation, reducing downtime during maintenance. These are available for a vast range of standard shaft sizes and stuffing box dimensions.
Q: What is the proper installation procedure for graphite packing?
A: Proper installation is key to performance. Key steps include: 1) Cleaning the shaft and box thoroughly. 2) Cutting rings with a sharp knife on a clean, flat surface—each ring should be cut to a precise 90-degree angle. 3) Staggering the joints by 90 degrees on successive rings. 4) Installing rings one at a time, seating each firmly with a stuffing tool. 5) Following a specific break-in procedure after installation: tighten the gland finger-tight, run the equipment for 15-30 minutes, then make incremental adjustments (usually 1/6 turn of the gland nuts) until a slight leakage for cooling is achieved. Never overtighten.
Q: How do I select the right grade of graphite packing for my application?
A: Selection is based on the "P.V.T.M." factors: Pressure, Velocity (shaft speed), Temperature, and Media (chemical compatibility). Our standard GRA-100 grade covers a majority of applications. For higher speeds/pressures, choose the wire-reinforced GRA-200. For highly oxidizing environments, consult our technical team for a treated grade. Providing Kaxite Sealing with your complete operating parameters ensures we recommend the optimal, cost-effective solution.
Why Choose Kaxite Sealing for Your Graphite Packing Needs?
Selecting a sealing partner is as critical as selecting the material. Kaxite Sealing brings more than just a product to the table; we deliver engineered solutions backed by deep technical expertise. Our graphite packing is subjected to rigorous quality control, from raw material sourcing to final packaging, ensuring consistency and reliability in every spool and ring. We support our products with comprehensive technical data sheets, detailed installation manuals, and direct access to our application engineers. Whether you are sealing a simple water pump or a critical reactor charge pump in a chemical plant, Kaxite Sealing provides the high-performance graphite packing and the expert support required to maximize equipment uptime and safety.
- View as

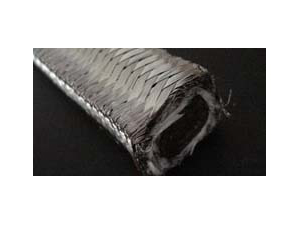

High-temperature High-pressure Valves Special Graphite Packing
Elevate your valve performance with Kaxite Sealing's High-temperature High-pressure Valves Special Graphite Packing. Engineered with premium graphite, it ensures robust, leak-free sealing in extreme conditions—ideal for industrial applications like chemical plants and power generation. Experience superior durability, enhanced safety, and reduced maintenance costs, setting it apart from standard options. Trust Kaxite Sealing to deliver reliable, high-performance solutions that safeguard your operations and inspire confidence.
Read MoreSend Inquiry

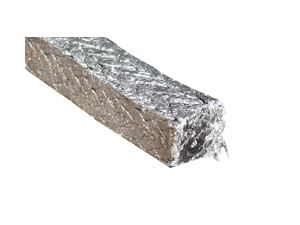

Super Graphite Valve Packing
Discover Kaxite Sealing's Super Graphite Valve Packing, a premium sealing solution designed for high-temperature and corrosive applications in industrial valves. Its superior graphite material ensures exceptional durability, leak resistance, and reliability in harsh environments like chemical plants and power facilities. Perfect for engineers and maintenance teams seeking efficient, long-lasting performance, this product reduces downtime and ensures safety. Unlike standard packings, it offers enhanced thermal stability and ease of installation, making it a standout choice. Trust Kaxite Sealing to deliver quality and innovation that inspires confidence and operational excellence.
Read MoreSend Inquiry

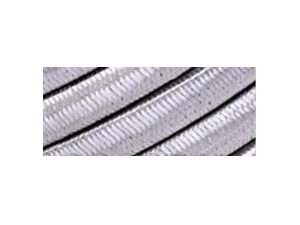

Jacketed Graphite Packing
Kaxite Sealing's Jacketed Graphite Packing is a premium sealing solution that offers unparalleled durability and leak resistance for demanding industrial applications. Its advanced design features a flexible graphite core encased in a protective jacket, ensuring superior performance in high-temperature and corrosive environments. Ideal for engineers, maintenance professionals, and manufacturers, this product guarantees reliability in pumps, valves, and compressors. Experience peace of mind with enhanced safety and reduced downtime. Unlike standard packings, it provides exceptional thermal stability and easy installation. Trust Kaxite Sealing for long-lasting, efficient sealing that boosts productivity and protects your assets.
Read MoreSend Inquiry

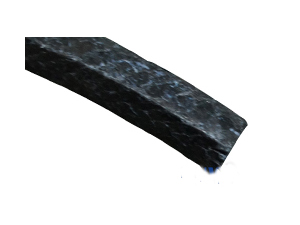

Graphite Packing With PTFE Impregnated
Kaxite Sealing presents Graphite Packing With PTFE Impregnated, a premium sealing solution engineered for demanding industrial applications. Ideal for manufacturers and engineers, it combines flexible graphite with PTFE impregnation to deliver exceptional chemical resistance, high-temperature stability, and reliable performance in harsh environments like pumps and valves. Unlike standard packings, this product reduces downtime and maintenance costs, offering peace of mind and operational efficiency. Experience durable, long-lasting seals that elevate your equipment's reliability.
Read MoreSend Inquiry

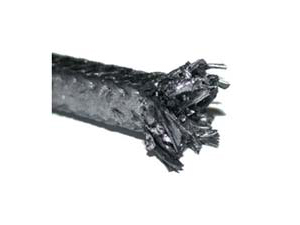

Graphite Packing with Carbon Fiber Corners
Discover Kaxite Sealing's Graphite Packing with Carbon Fiber Corners for superior sealing solutions. This innovative product combines durable graphite with carbon fiber corners to offer exceptional performance under high temperatures and pressures. Ideal for industrial applications like valves and pumps, it prevents leaks and ensures safety. Users enjoy long-lasting reliability and efficiency, reducing maintenance costs. Its unique carbon fiber edges provide enhanced stability and wear resistance. Experience unmatched sealing quality with Kaxite Sealing today!
Read MoreSend Inquiry

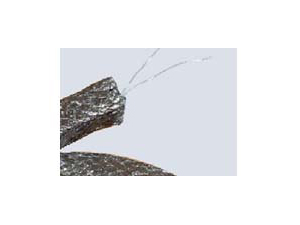

Graphite Packing Reinforced with Metal Wire
