What Are Serrated Gaskets?

In the demanding world of industrial sealing, where pressures soar, temperatures fluctuate wildly, and chemical compatibility is paramount, standard flat gaskets often fall short. This is where the engineered solution of serrated gaskets comes into play. Also known as grooved or corrugated gaskets, these are specialized sealing elements designed to provide a robust, reliable seal in high-pressure, high-temperature applications, particularly for flanged connections.

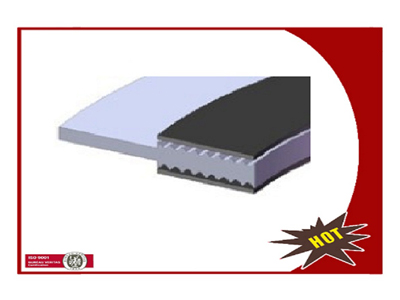

The defining feature of a serrated gasket is its surface pattern—a series of concentric, sharp-edged grooves or teeth machined onto one or both faces. These serrations bite into the flange surface material when the joint is bolted, creating multiple concentric sealing lines. This mechanical interlock significantly increases the sealing force per unit area compared to a flat surface, preventing the gasket from being extruded under extreme internal pressure. At Kaxite Sealing, we engineer our serrated gaskets to master these challenging environments, ensuring leak-proof integrity and long-term performance.

Key Features and Advantages of Kaxite Serrated Gaskets

Kaxite Sealing manufactures serrated gaskets that stand out for their precision and durability. Here are their core advantages:

• Superior Sealing Under High Pressure: The serrations concentrate the bolt load onto the raised ridges, creating extremely high local contact stress. This effectively seals the microscopic imperfections on the flange faces, preventing media leakage even under severe pressure cycling.
• Excellent Resistance to Blow-Out: The grooves provide a physical barrier against gasket extrusion. When internal pressure pushes the gasket material outward, it is constrained by the flange metal within the grooves, drastically reducing the risk of catastrophic failure.
• High-Temperature Performance: Constructed from materials like stainless steel, monel, or nickel alloys, our gaskets maintain strength and sealing force at elevated temperatures where non-metallic gaskets would degrade.
• Reduced Required Bolt Load: Due to the efficient load concentration, achieving an effective seal often requires lower overall bolt torque compared to flat gaskets, which can simplify assembly and reduce flange stress.
• Reusability: When used on serrated flange faces, Kaxite serrated metal gaskets can often be re-used several times without significant loss of sealing performance, offering cost savings over time.

Detailed Product Parameters and Specifications

Selecting the correct serrated gasket requires careful attention to its parameters. Kaxite Sealing offers a wide range of configurations to meet specific application needs.

Common Materials of Construction

• Soft Iron: Economical, good for high temperatures (up to 500°C) in non-corrosive services like steam, air, or oil.
• Carbon Steel: Good strength and temperature resistance; used in various refinery and petrochemical applications.
• Stainless Steel (304, 316, 316L): Excellent corrosion resistance and high-temperature strength. The most common choice for chemical, pharmaceutical, and food processing industries.
• Monel, Inconel, Hastelloy: Special alloys for extreme corrosion resistance in aggressive acidic or caustic environments and very high temperatures.
• Copper, Aluminum: Used for specific thermal conductivity or softness requirements.

Standard Serration Profiles (Patterns)

The profile of the serration affects bite and sealing performance. Kaxite provides standard and custom profiles.

Critical Dimensions and Standards

Serrated gaskets must conform to precise dimensional standards to fit flanges correctly.

All Kaxite Sealing serrated gaskets are manufactured to international standards such as ASME B16.20, B16.21, DIN, and EN, ensuring global compatibility and reliability.

Typical Applications of Serrated Gaskets

Our gaskets are specified for critical services across industries where safety and zero leakage are non-negotiable:

• Oil & Gas: Wellhead equipment, Christmas trees, pipeline flanges, compressors, high-pressure valves.
• Petrochemical & Refining: Reactors, catalytic crackers, high-pressure separators, heat exchangers.
• Power Generation: Steam turbine connections, boiler feed pumps, high-pressure steam lines.
• Chemical Processing: Agitated reactors, pressure vessels handling corrosive media.
• Aerospace & Hydraulics: Test stands, fuel systems, ultra-high-pressure hydraulic lines.

Serrated Gaskets: Frequently Asked Questions (FAQ)

Q: What is the main difference between a serrated gasket and a standard flat ring gasket?
A: The key difference lies in the surface finish. A standard flat ring gasket has smooth, parallel sealing surfaces. A serrated gasket has concentric grooves machined into its faces. These grooves (serrations) concentrate the bolting force, creating a much more effective mechanical seal that resists high internal pressure and prevents the gasket from being blown out of the joint. They are designed for significantly more demanding service conditions.

Q: On what type of flange faces should serrated gaskets be used?
A: Serrated gaskets are designed to be used with flat face (FF) or raised face (RF) flanges. For optimal performance and to avoid excessive damage to the flange, it is recommended that the flange face finish be smooth (typically 125-250 µin Ra finish). They should not be used on serrated flange faces, as this can cause excessive galling and damage. The serrations on the gasket are meant to bite slightly into a smooth, hard flange surface.

Q: Can serrated gaskets be reused?
A: Metal serrated gaskets, especially those from quality manufacturers like Kaxite Sealing, can often be reused if they are carefully inspected after disassembly. Look for signs of excessive flattening of the serrations, cracks, corrosion, or permanent deformation. If the serrations are still pronounced and the gasket is not damaged, it can typically be reinstalled. However, for critical service applications, many engineers recommend using a new gasket to guarantee seal integrity.

Q: How do I determine the correct material grade for my application?
A: The material selection depends on three primary factors: the temperature of the service, the chemical composition (corrosivity) of the media being sealed, and the required pressure rating. Standard charts like the ASME B16.20 Appendix A or the ASME Boiler and Pressure Vessel Code provide guidelines. For complex chemical services, consulting with the material experts at Kaxite Sealing is advised to ensure compatibility and long-term performance.

Q: What is the proper installation torque for a serrated gasket?
A: There is no single universal torque value. The required bolt load depends on the gasket material, size, pressure class, and the specific flange/bold material. The best practice is to follow a controlled bolt tightening procedure as per ASME PCC-1, "Guidelines for Pressure Boundary Bolted Flange Joint Assembly." This often involves a cross-bolting pattern and multiple incremental tightening steps to achieve uniform load distribution. Using the manufacturer's recommended stress value for the gasket material is crucial.

Q: Are serrated gaskets suitable for vacuum service?
A: Yes, they can be excellent for high-vacuum applications. The multiple concentric sealing lines created by the serrations provide an effective barrier against atmosphere in-leakage. The gasket material must be suitable (e.g., stainless steel) and the flange surfaces must be clean, smooth, and flat to ensure a leak-tight seal for vacuum.

Q: How does Kaxite Sealing ensure the quality of its serrated gaskets?
A: Kaxite Sealing employs a rigorous quality management system. Our serrated gaskets are CNC machined from certified raw material stock, with every batch traceable to its mill test report. We perform dimensional inspections per relevant standards, and for critical orders, we can provide material certification and independent inspection reports. Our focus is on precision machining to ensure every serration is sharp, consistent, and delivers reliable performance.
