Introduction to Rubber Sheets: A Versatile Material for Countless Applications

For over two decades in the sealing and insulation industry, I've witnessed the critical role that high-quality Rubber sheets play in ensuring safety, durability, and performance across countless sectors. A Rubber sheet is far more than just a piece of material; it is a precisely engineered component designed to meet specific environmental and mechanical challenges. At Kaxite Sealing, we have dedicated ourselves to mastering the formulation and fabrication of these essential materials, understanding that the right sheet can mean the difference between a successful project and a costly failure. This guide delves deep into the world of Rubber sheets, providing detailed parameters, comparisons, and answers to help you make an informed choice for your specific needs.

Key Parameters Defining Rubber Sheet Performance

Selecting the correct Rubber sheet requires a thorough understanding of its key performance parameters. These specifications, often defined by international standards like ASTM or ISO, determine how the material will behave under stress, temperature, and exposure to various elements. Here are the critical parameters to consider:

• Material Type & Polymer Base: The fundamental chemical composition (e.g., Nitrile, EPDM, Silicone, Neoprene, Natural Rubber) dictates primary properties like oil resistance, weather ability, and temperature range.
• Hardness (Shore A Durometer): Measured on a Shore A scale, this indicates the material's resistance to indentation. A lower number (e.g., 40 Shore A) is softer and more pliable, while a higher number (e.g., 80 Shore A) is harder and more rigid.
• Tensile Strength: The maximum stress the material can withstand while being stretched before breaking. It's a key indicator of durability and mechanical robustness.
• Elongation at Break: The percentage increase in length that a material will achieve before it ruptures under tension. This measures the material's flexibility and ability to stretch without tearing.
• Compression Set: This measures the material's ability to return to its original thickness after being subjected to a compressive force for a prolonged period. A low compression set is vital for long-term sealing performance.
• Temperature Range: The minimum and maximum temperatures at which the material retains its functional properties without degrading, hardening, or becoming brittle.
• Resistance Properties: Specific resistances to oils, fuels, chemicals, ozone, UV light, water, and weathering are crucial for application suitability.
• Thickness & Tolerance: Available in various thicknesses (from 1/32" to 1" or more) with specified dimensional tolerances to ensure a perfect fit.

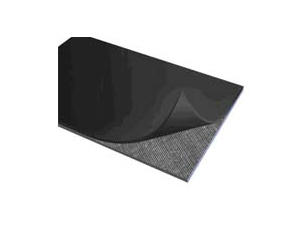

• Color & Finish: While often functional (black being standard), color can be used for coding or aesthetic purposes. Finish refers to the surface texture (e.g., smooth, fabric-reinforced, dimpled).

Kaxite Sealing's Premium Rubber Sheet Product Matrix

At Kaxite Sealing, we offer a comprehensive portfolio of Rubber sheets, each engineered for optimal performance in targeted conditions. The following table provides a detailed comparison of our most popular grades, showcasing their specifications and ideal applications.

Detailed Specifications for Custom Selection

Beyond the general matrix, engineers often require more granular data. Below is a detailed specification list for a commonly requested grade, Kaxite-NBR70, illustrating the depth of data Kaxite Sealing provides to ensure confidence in material selection.

• Grade: Kaxite-NBR70 (Conforms to ASTM D2000 BF, SAE J200/ASTM D2000 BK)
• Color: Black (standard)
• Standard Thickness: 1/16", 1/8", 1/4", 1/2", 3/4", 1" (Custom thicknesses available)
• Thickness Tolerance: ±0.010" for sheets up to 1/4"; ±10% for sheets over 1/4"
• Specific Gravity: 1.35 - 1.40
• Elongation at Break: Minimum 350%
• Compression Set (22 hrs @ 100°C): Maximum 25%
• Tear Resistance (Die C): Minimum 30 kN/m
• Flame Resistance: Self-extinguishing (ASTM D568)

Rubber Sheet FAQ: Your Questions Answered by Kaxite Sealing Experts

Q: What is the most important factor when choosing a rubber sheet?
A: The single most important factor is matching the material's resistance properties to the specific fluids and environments it will encounter. For instance, using a standard EPDM sheet in an oil-based application will lead to rapid swelling and failure. Always prioritize chemical compatibility first, followed by temperature range and physical requirements like hardness and pressure.

Q: How do I measure the hardness of a rubber sheet, and what Shore A value do I need?
A: Hardness is measured using a device called a durometer. For gaskets that need to conform to uneven surfaces (flange faces), a softer rubber (50-70 Shore A) is typically used. For pads, bumpers, or high-pressure seals where extrusion is a concern, a harder rubber (70-90 Shore A) is preferred. Kaxite Sealing provides data sheets with precise hardness for all our grades.

Q: Can Kaxite Sealing rubber sheets be used for outdoor applications?
A: Absolutely, but the correct type must be selected. EPDM rubber sheets, like our Kaxite-EPDM60, are renowned for their outstanding resistance to weathering, UV radiation, and ozone, making them the premier choice for long-term outdoor use. Neoprene also offers good outdoor resistance, while Nitrile and Natural Rubber are not recommended for prolonged outdoor exposure.

Q: What is the difference between a "gasket" and a "rubber sheet"?
A: A rubber sheet is the raw, roll or sheet stock material from which gaskets, seals, and other components are fabricated (die-cut, water-jet cut, or hand-cut). Think of the rubber sheet as the fabric, and the gasket as the custom-tailored garment made from it. Kaxite Sealing supplies the high-quality sheet material, which can then be converted to fit your exact dimensions.

Q: How does temperature affect the performance of a rubber sheet?
A: Temperature dramatically impacts rubber properties. Exceeding the upper temperature limit can cause permanent hardening (embrittlement), loss of elasticity, or chemical degradation. Going below the lower limit can cause the rubber to stiffen and lose its sealing force, potentially leading to leaks. Always choose a material whose full operating range comfortably encompasses your application's temperature extremes, including safety margins.

Q: Are Kaxite Sealing rubber sheets suitable for food contact or potable water applications?
A: Yes, but only specific, compliant grades. Our Kaxite-SIL50 silicone sheets, for example, are often manufactured to meet FDA CFR 21 and NSF/ANSI 51 standards for food contact. For potable water, EPDM compounds certified to NSF/ANSI 61 are used. It is critical to specify your regulatory requirements when ordering to receive the appropriate, certified material.

Q: How should I store my rubber sheets to ensure a long shelf life?
A: Proper storage is essential. Sheets should be stored in a cool, dark, dry place away from direct sunlight, ozone generators (like electric motors), and heat sources. Ideal temperature is between 10°C and 25°C (50°F to 77°F). Keep the sheets flat or on a roll (not folded) and away from any chemicals or solvents. Under these conditions, most Kaxite Sealing sheets will maintain their properties for many years.

Q: Can I get custom-compounded rubber sheets from Kaxite Sealing?
A: Yes. While our standard product range covers over 90% of industrial needs, Kaxite Sealing excels at developing custom compounds. If your application involves unique chemical exposures, extreme temperature cycles, specific regulatory needs, or specialized physical properties, our technical team can work with you to compound a rubber sheet that meets your exact, demanding specifications.
